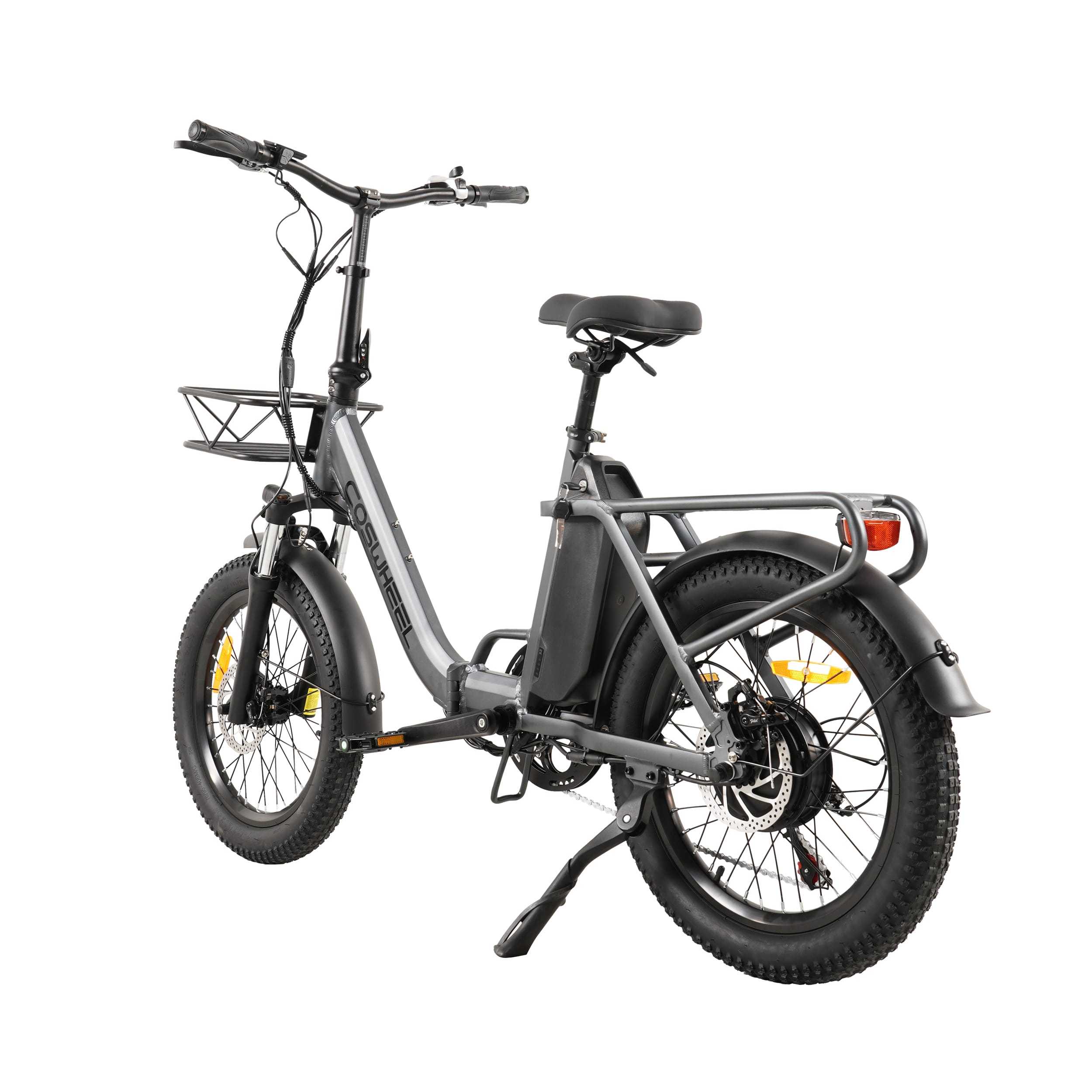

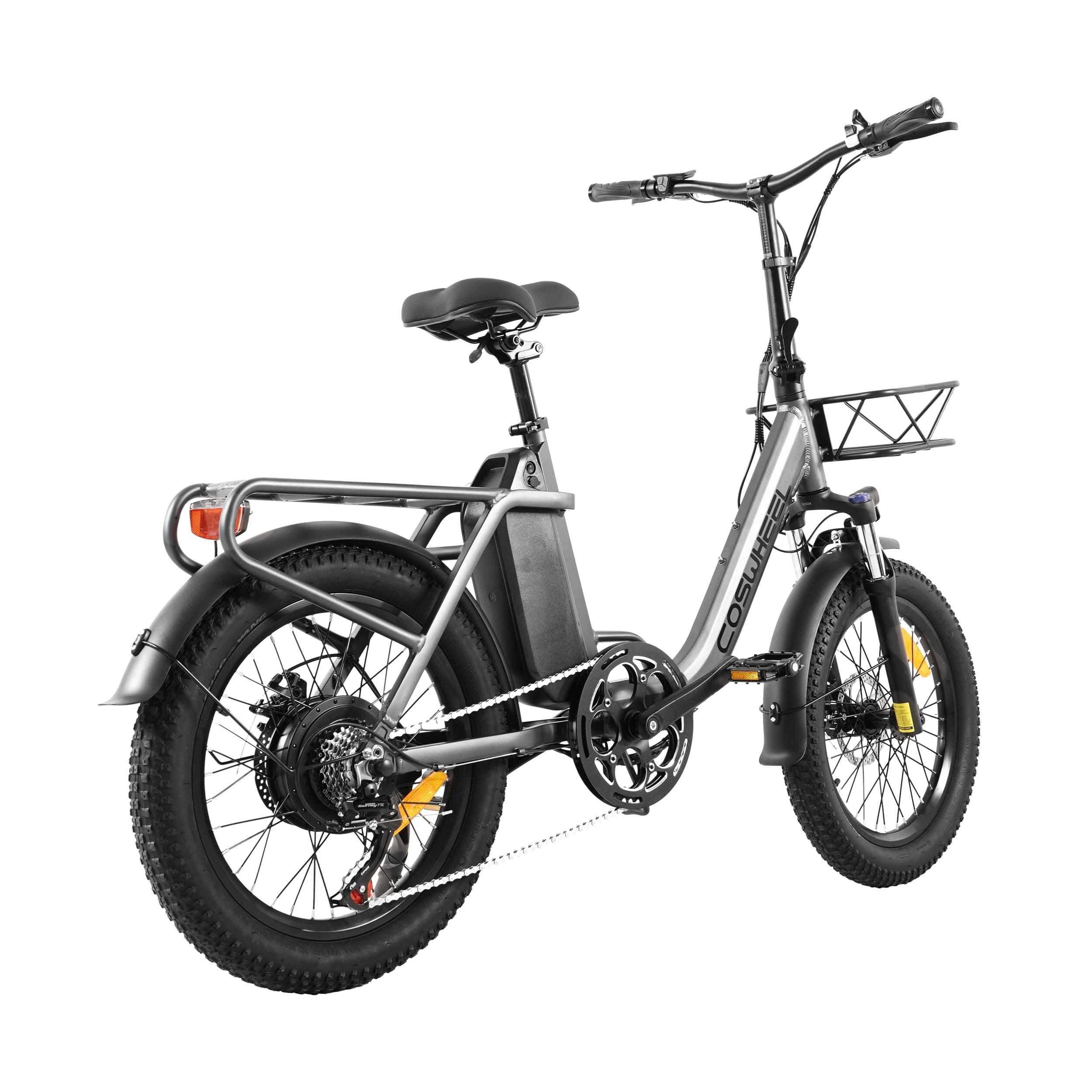

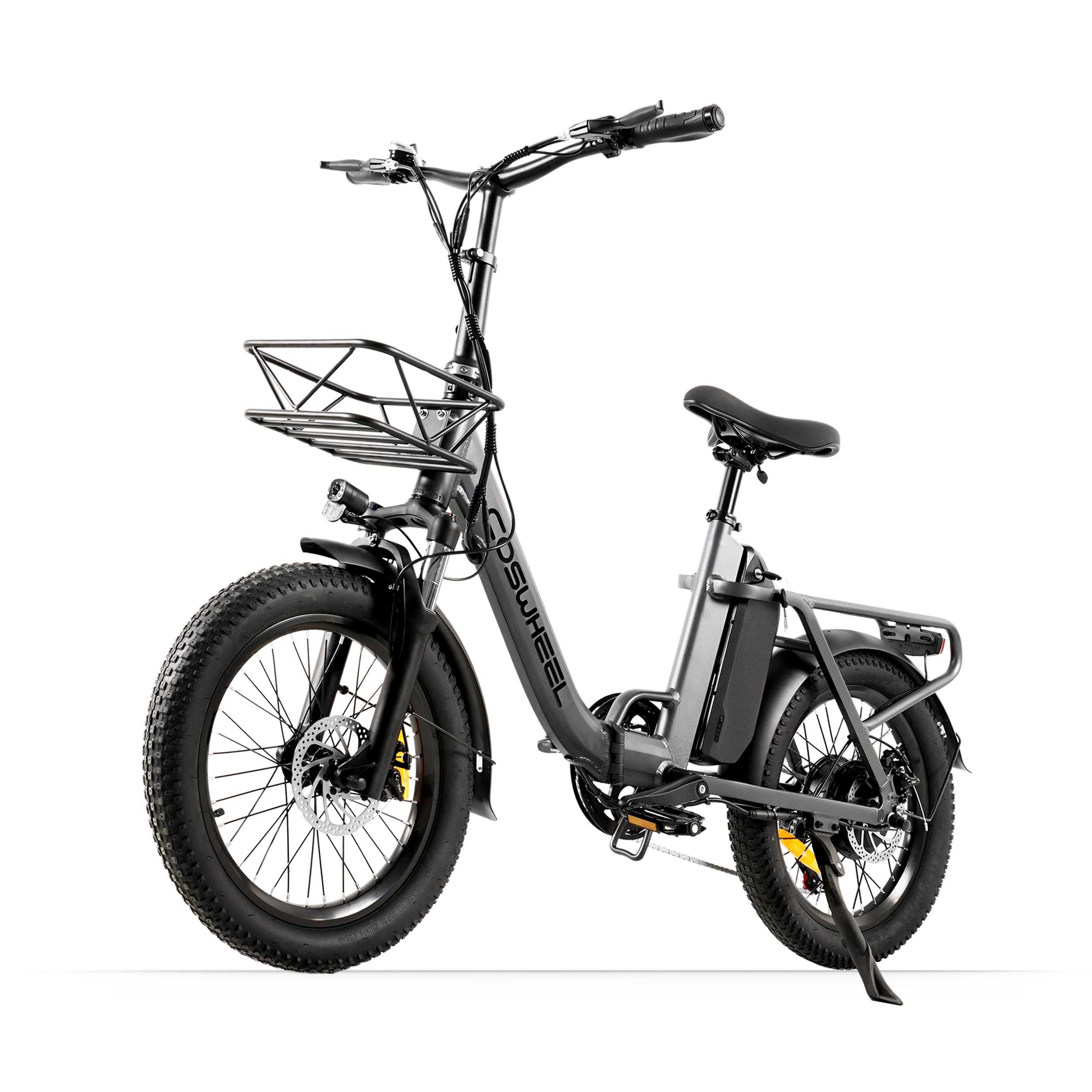

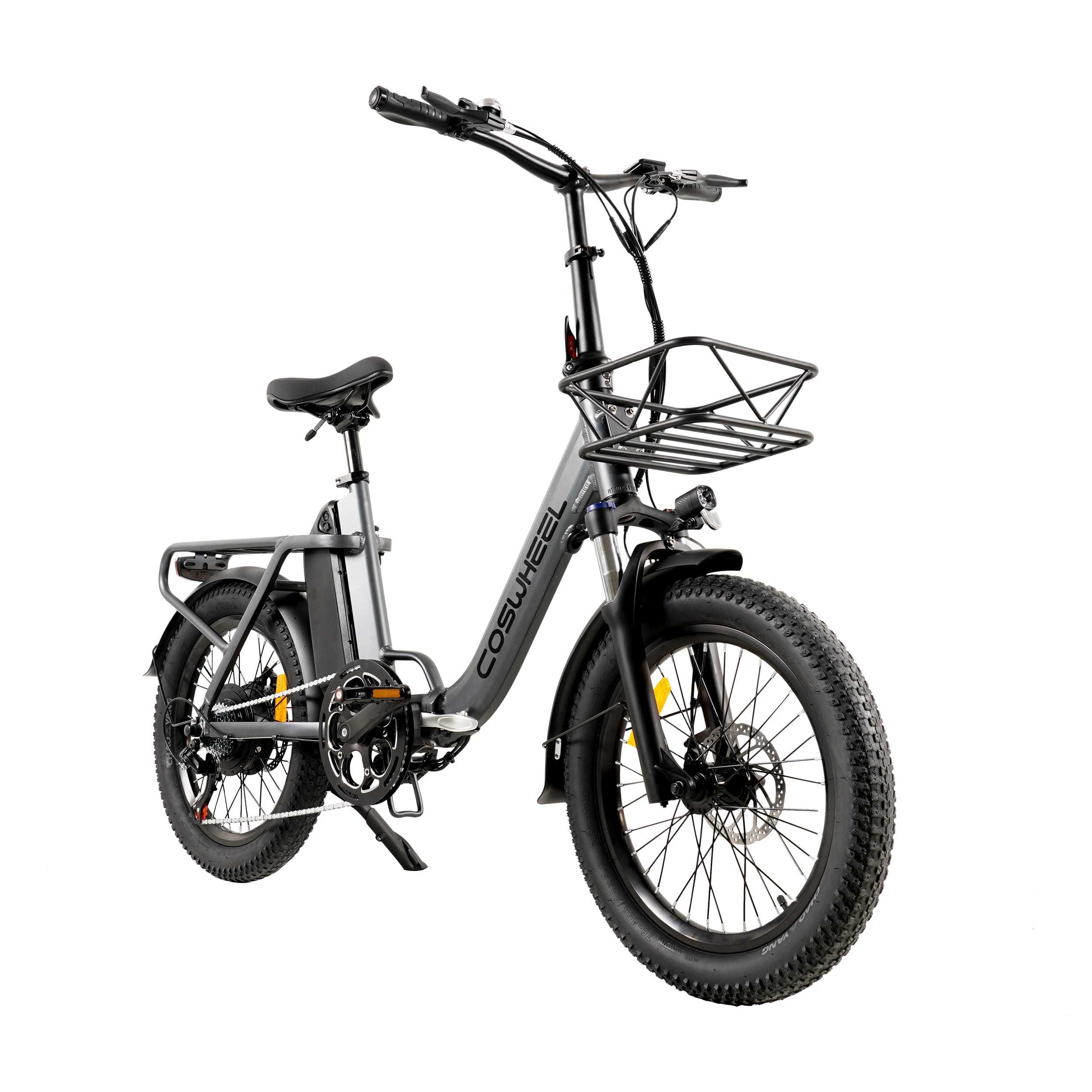

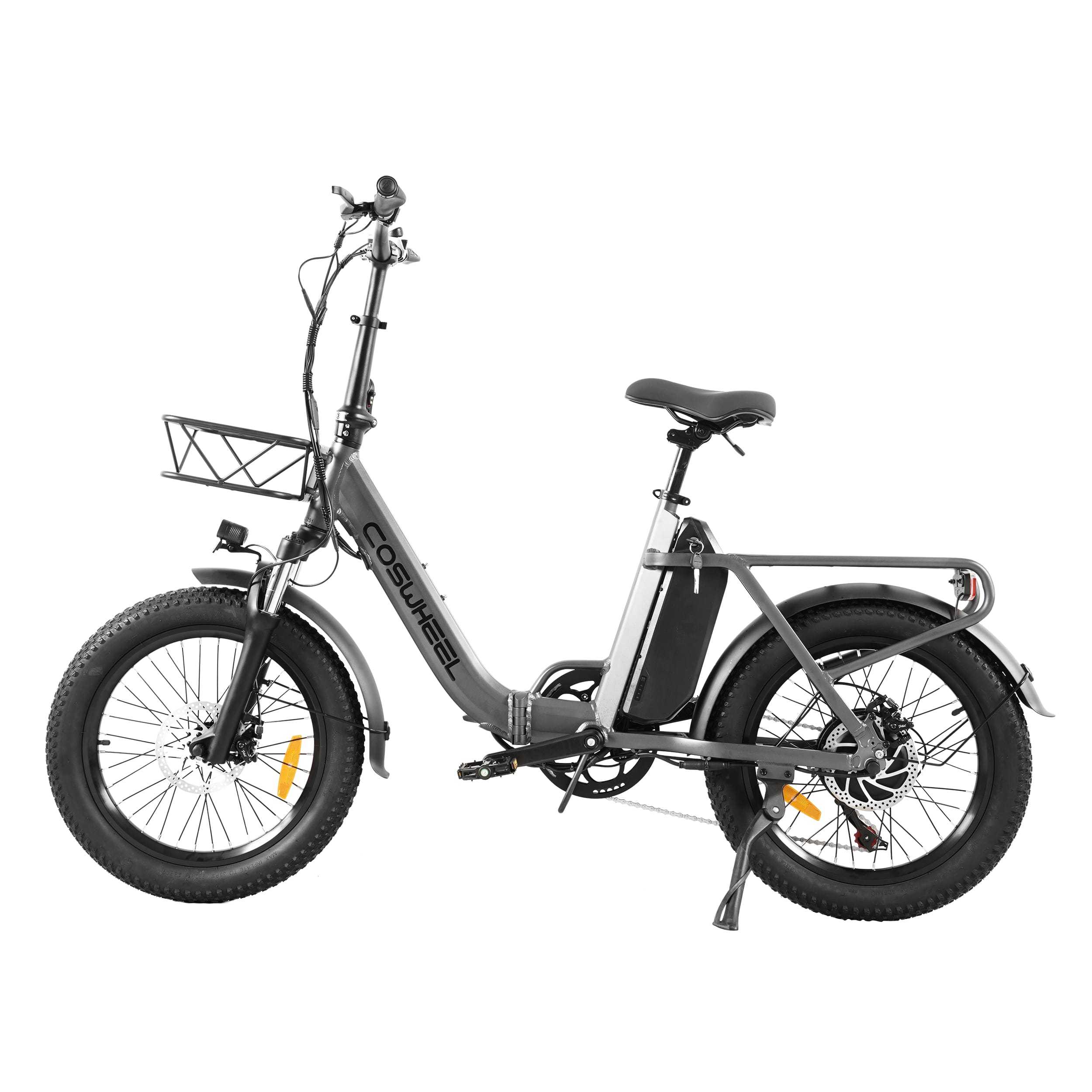

Y20L Step Through Folding Electric Bike
Y20L is a new commuter step through electric bike launched by COSWHEEL. Its biggest feature is that it is equipped with a torque sensor, which can save riders effort and distribute power output more easily compared to electromagnetic induction sensors. At the same time, Y20L is equipped with a peak 1200W (rated 750W) motor, 50N.m torque, and a maximum speed of 28mph (45km/h). The 15AH lithium battery has a maximum range of 52 miles (84km) (throttle + pedal assist).


Y20L Electric Bike for Adults Women Teens
1. The first design of Step-Thru electric bike, allowing more people to experience the fun of riding

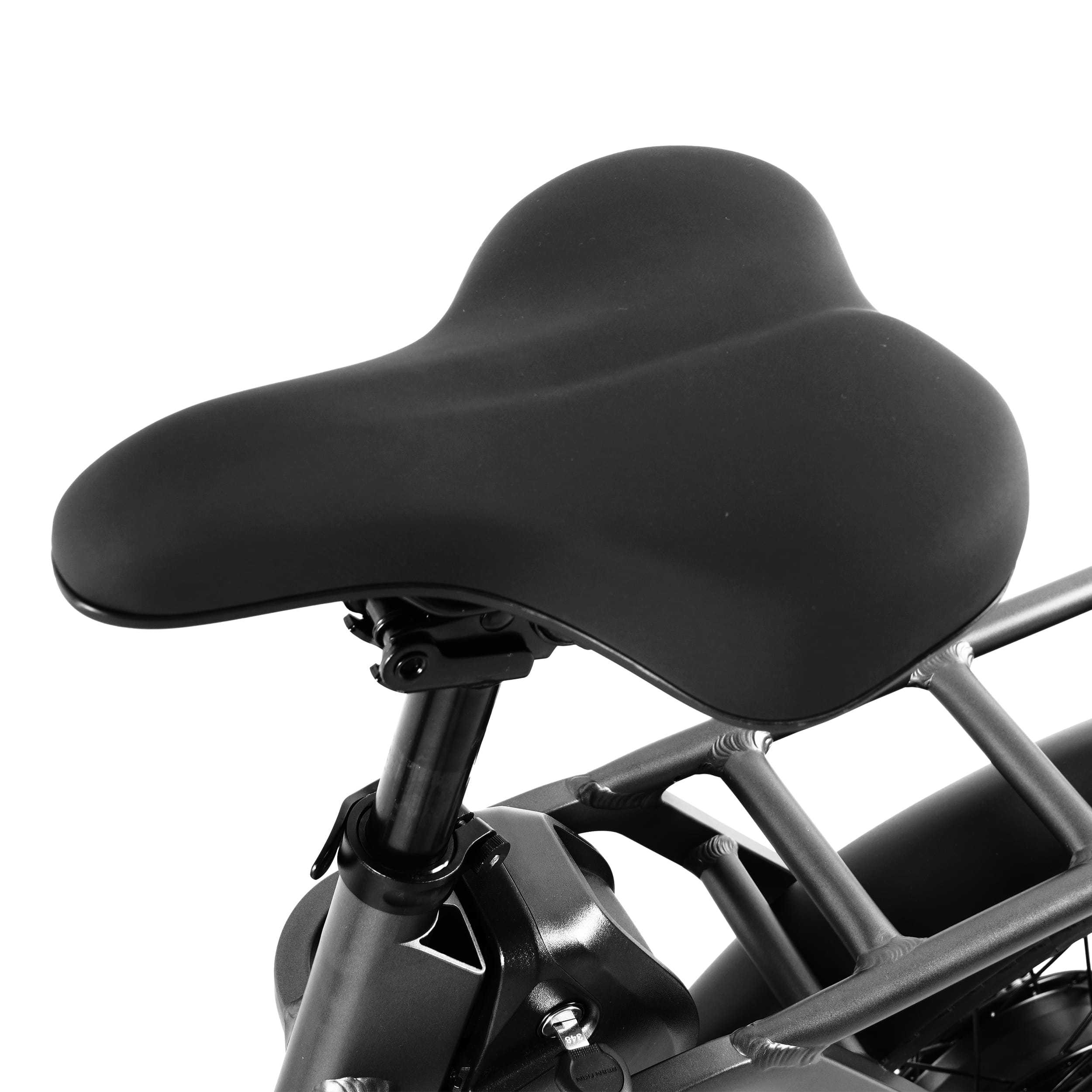

2. Adjustable seat, seat height 32.3"-39.7" (82-101cm), suitable for riders 5'1" - 6'5", friendly to women and teenagers

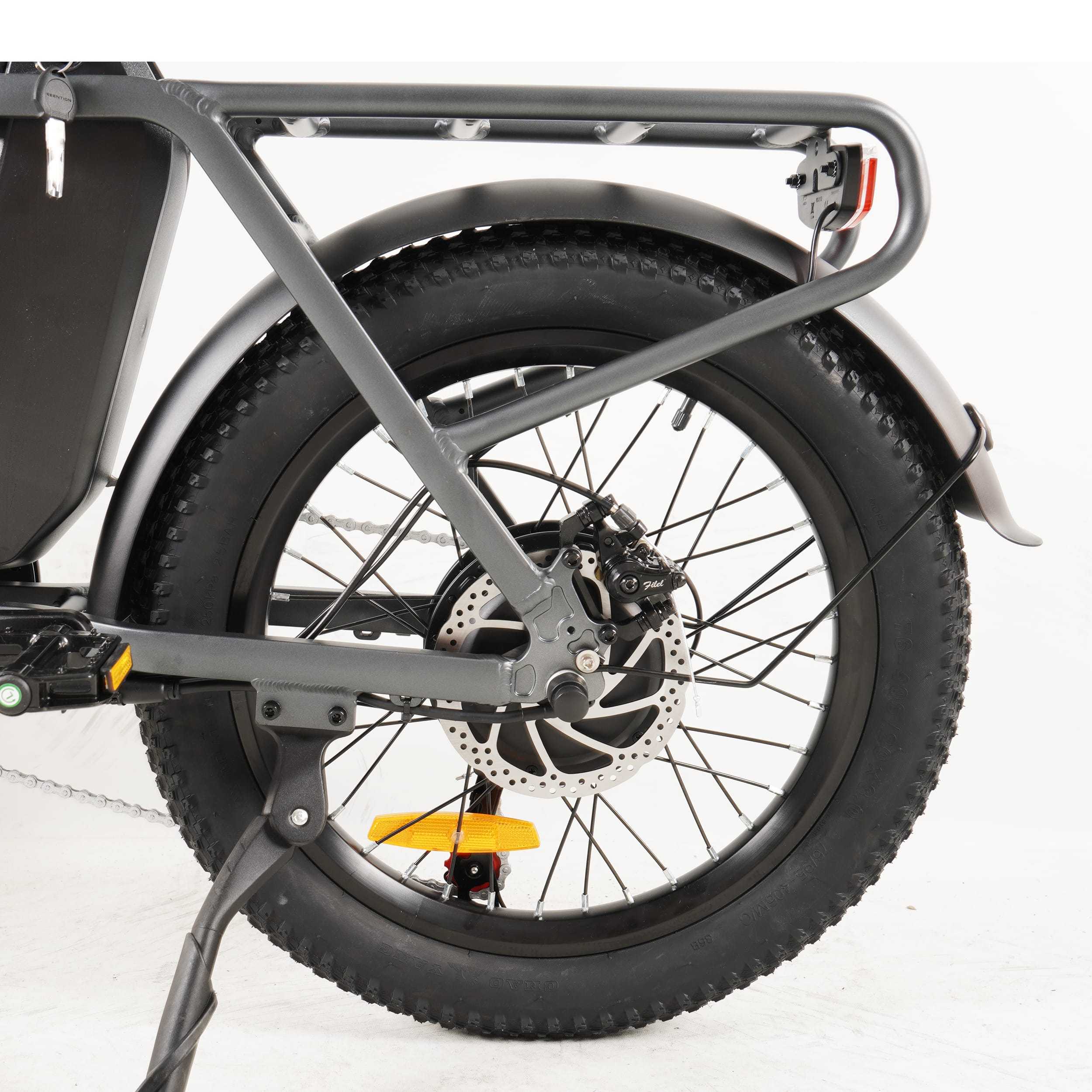

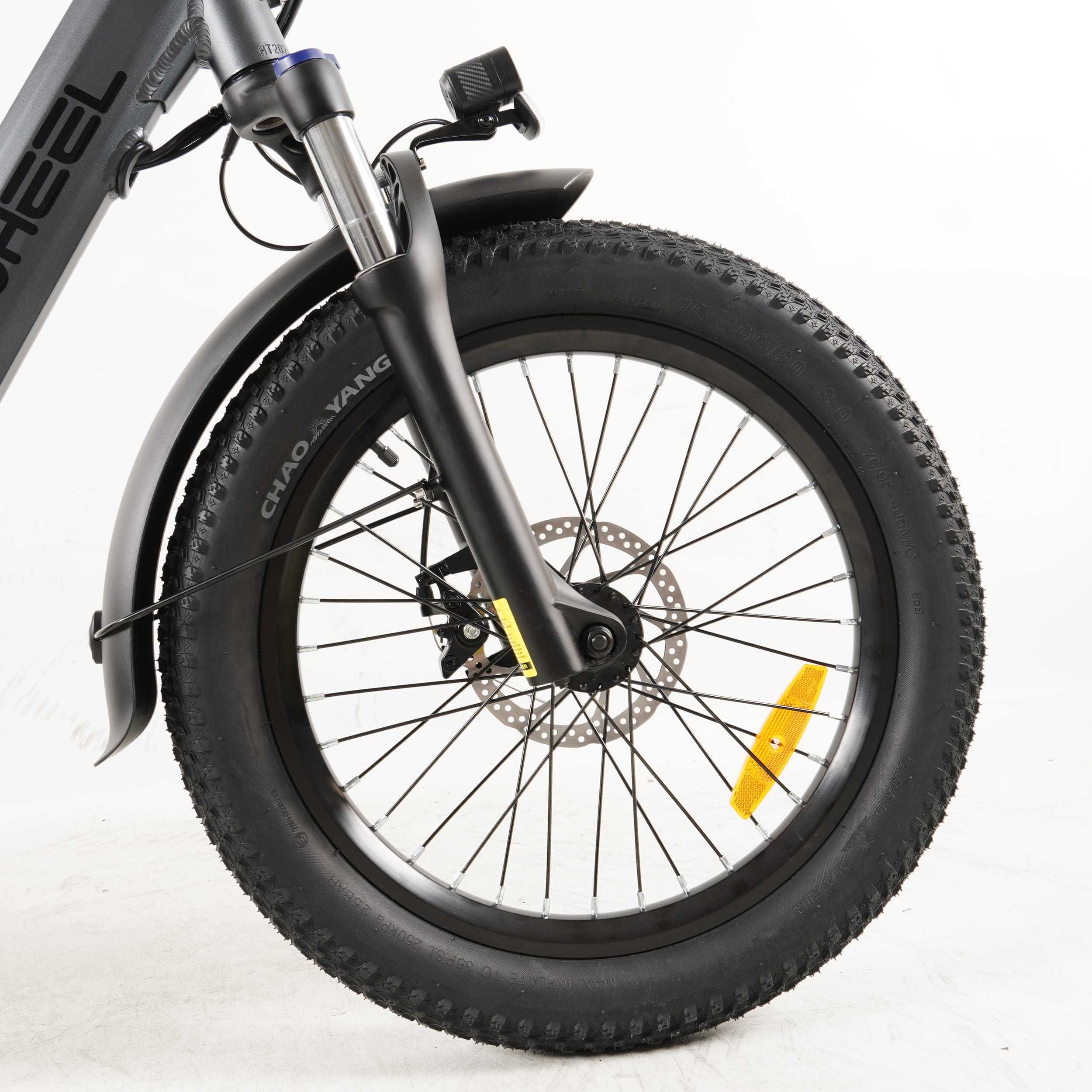

3. 20"*3" Chaoyang all-terrain tires, low friction, easier to ride.
Y20L Compact and Flexible
1. Y20L uses a more advanced torque sensor, which provides power as you pedal, and the power distribution is even. Compared with the rapid power of the electromagnetic induction sensor, the power of the torque sensor is softer, which is more friendly to aging riders and riders with certain physical defects.

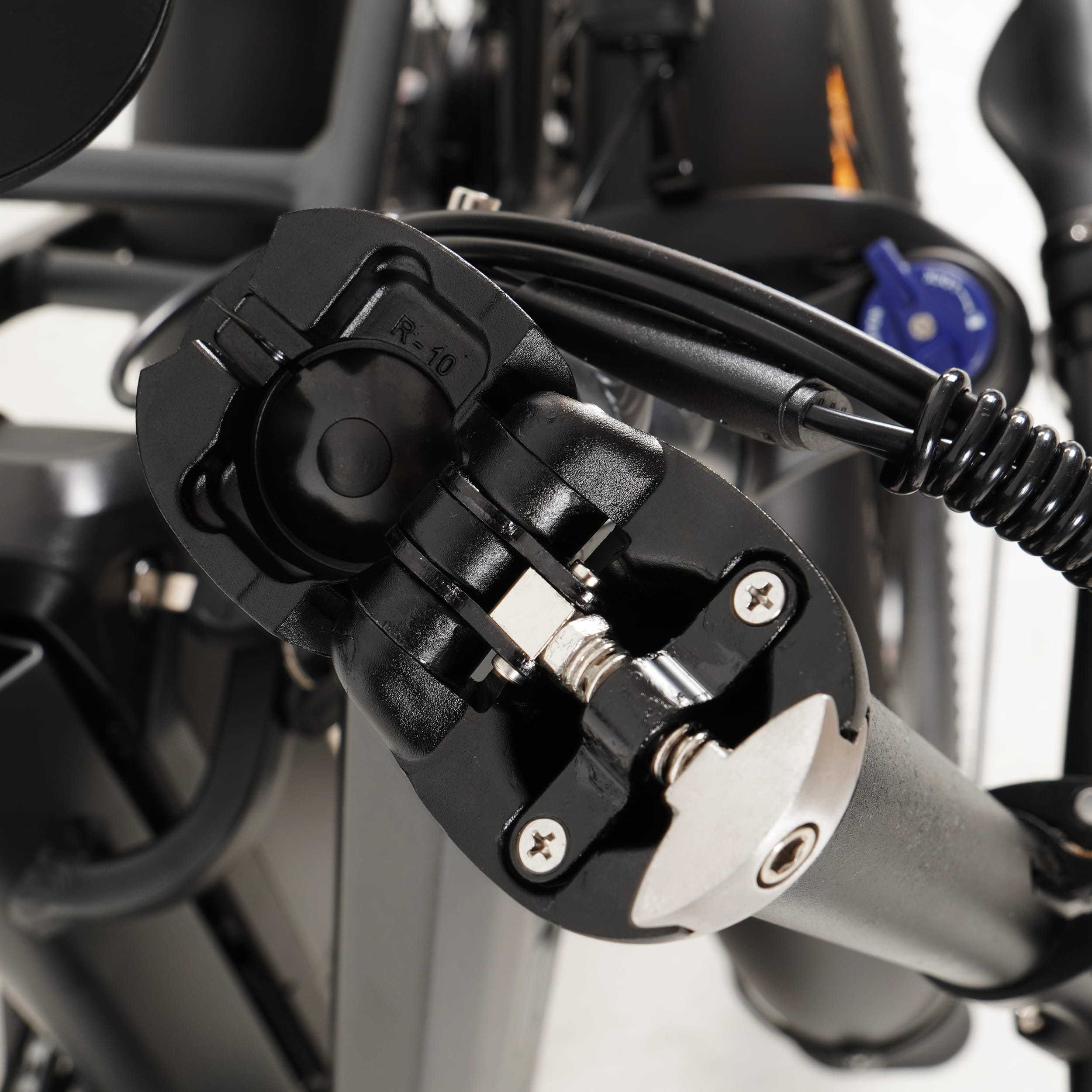

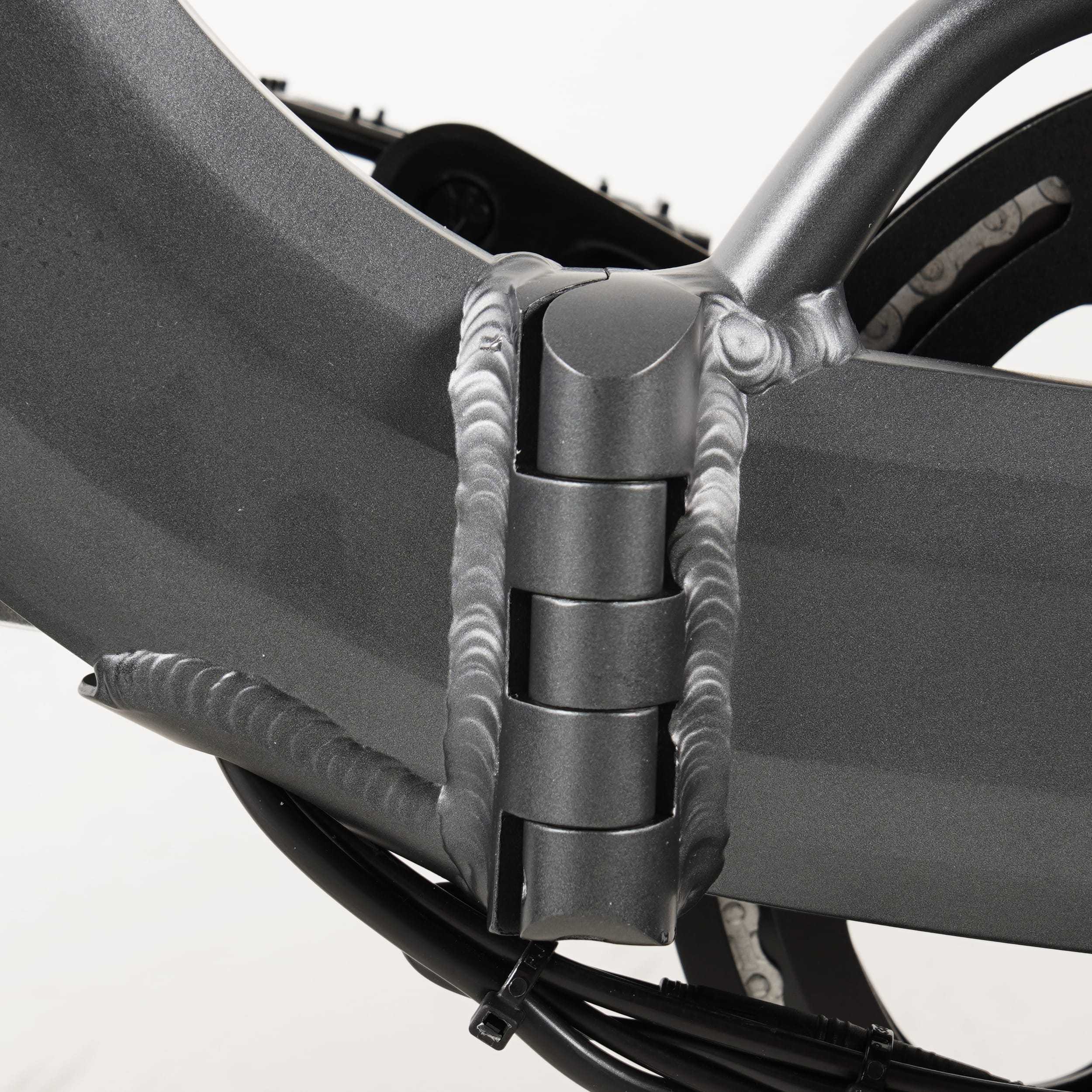

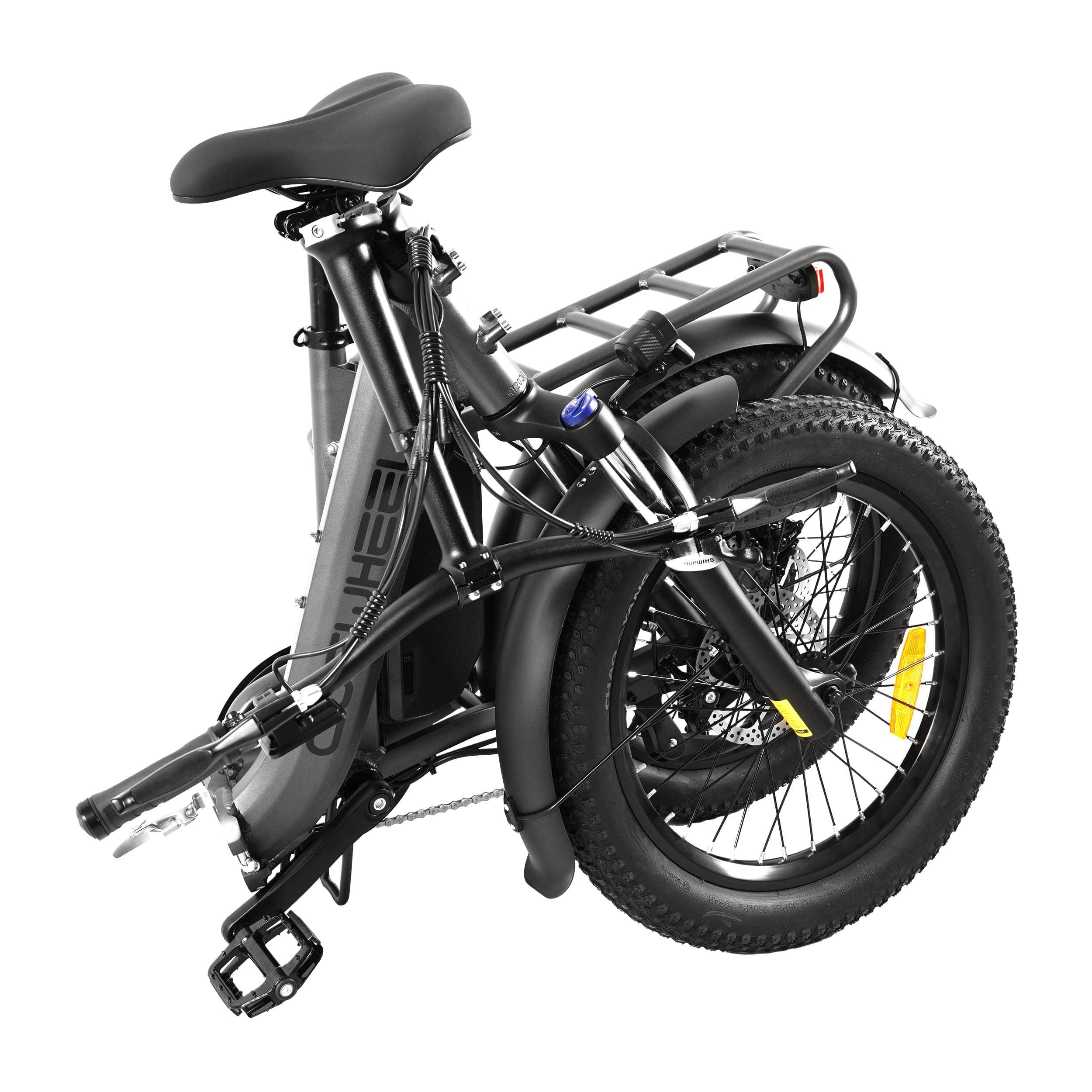

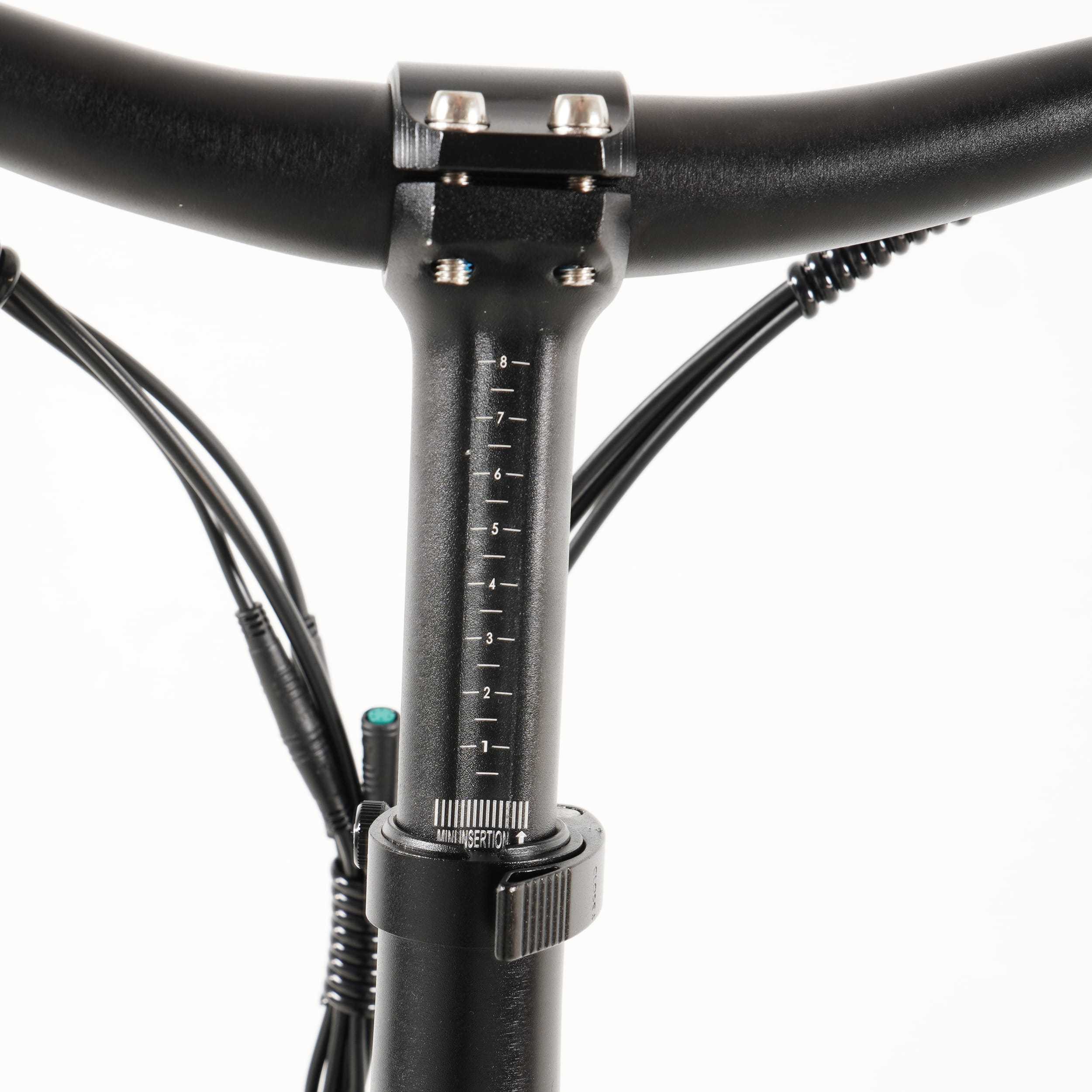

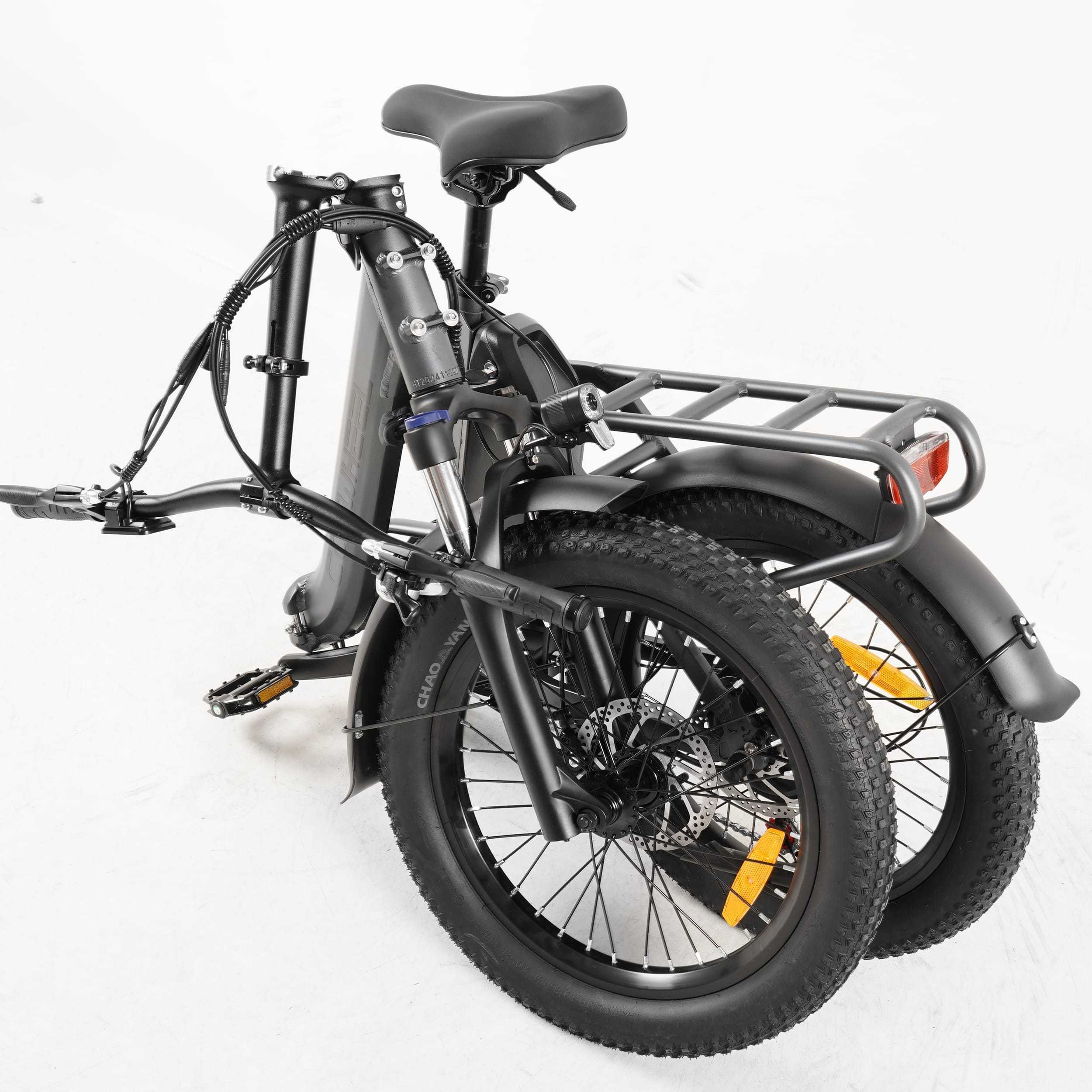

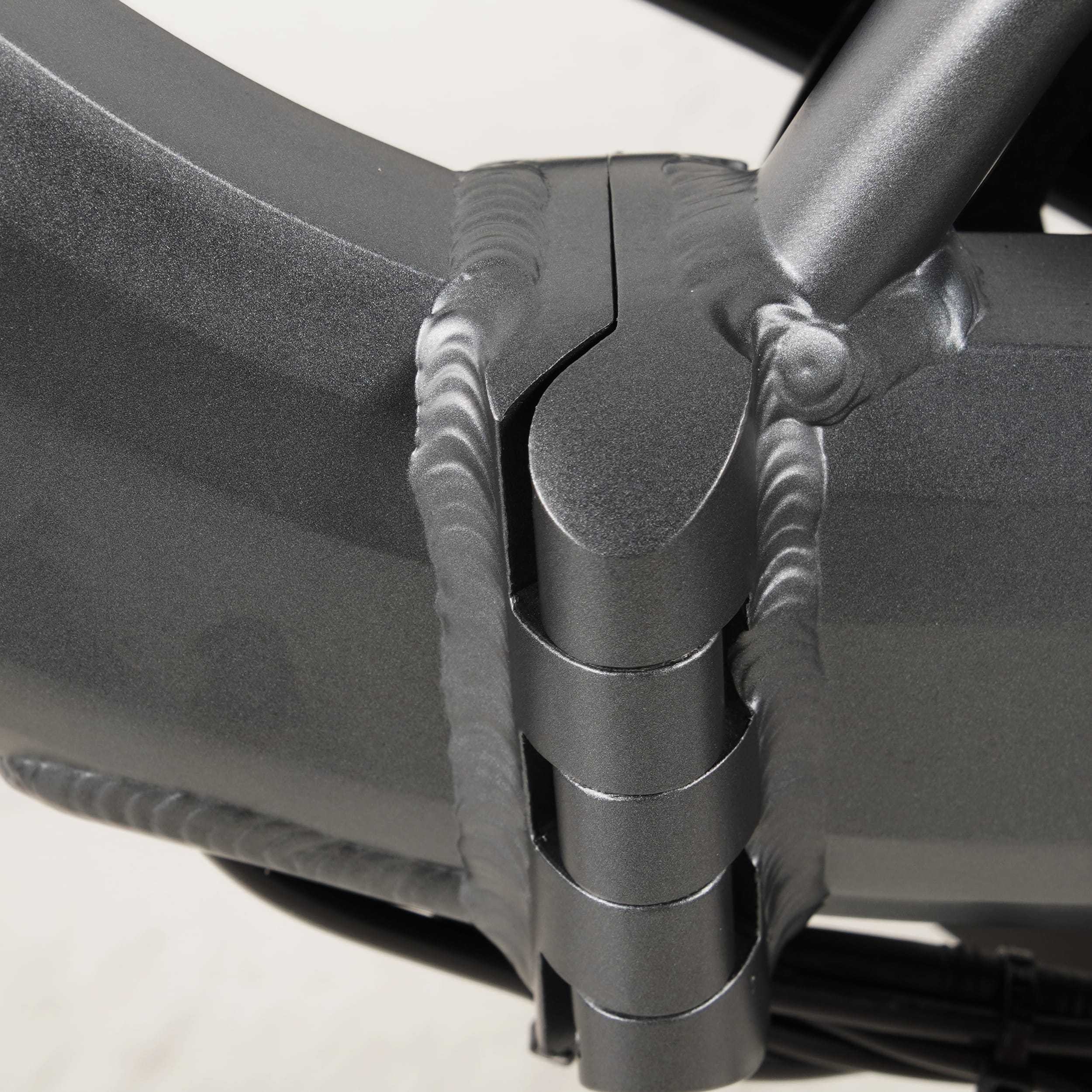

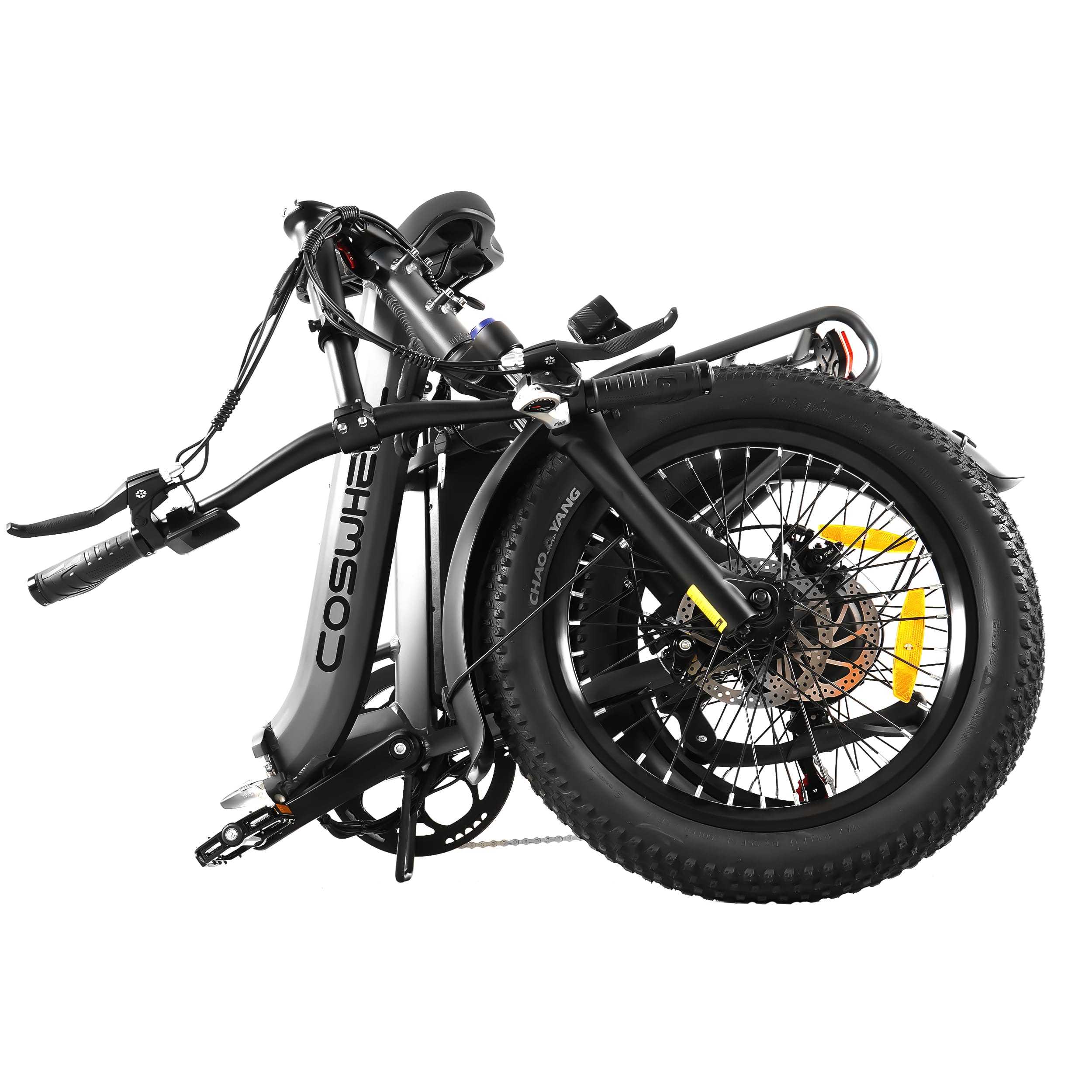

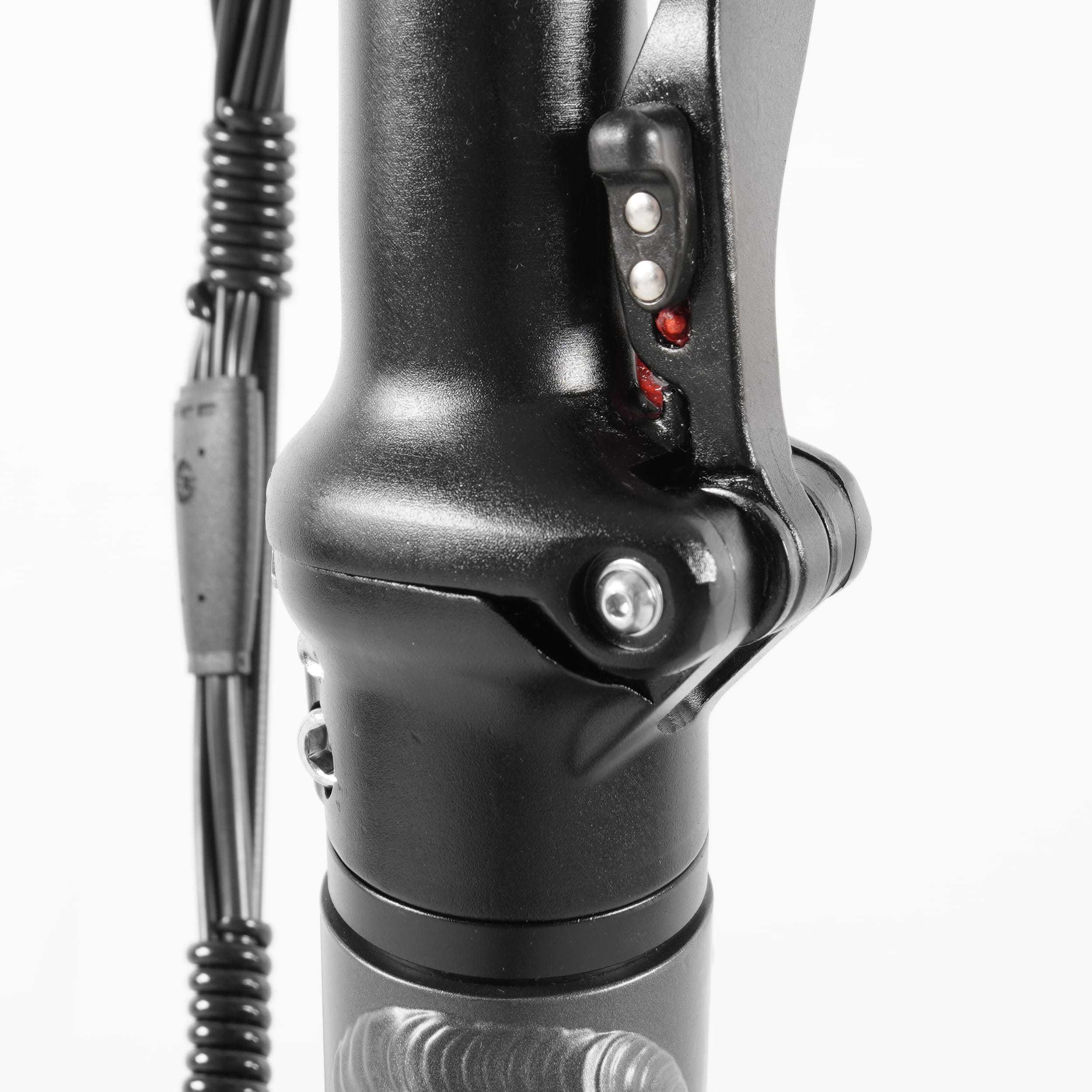

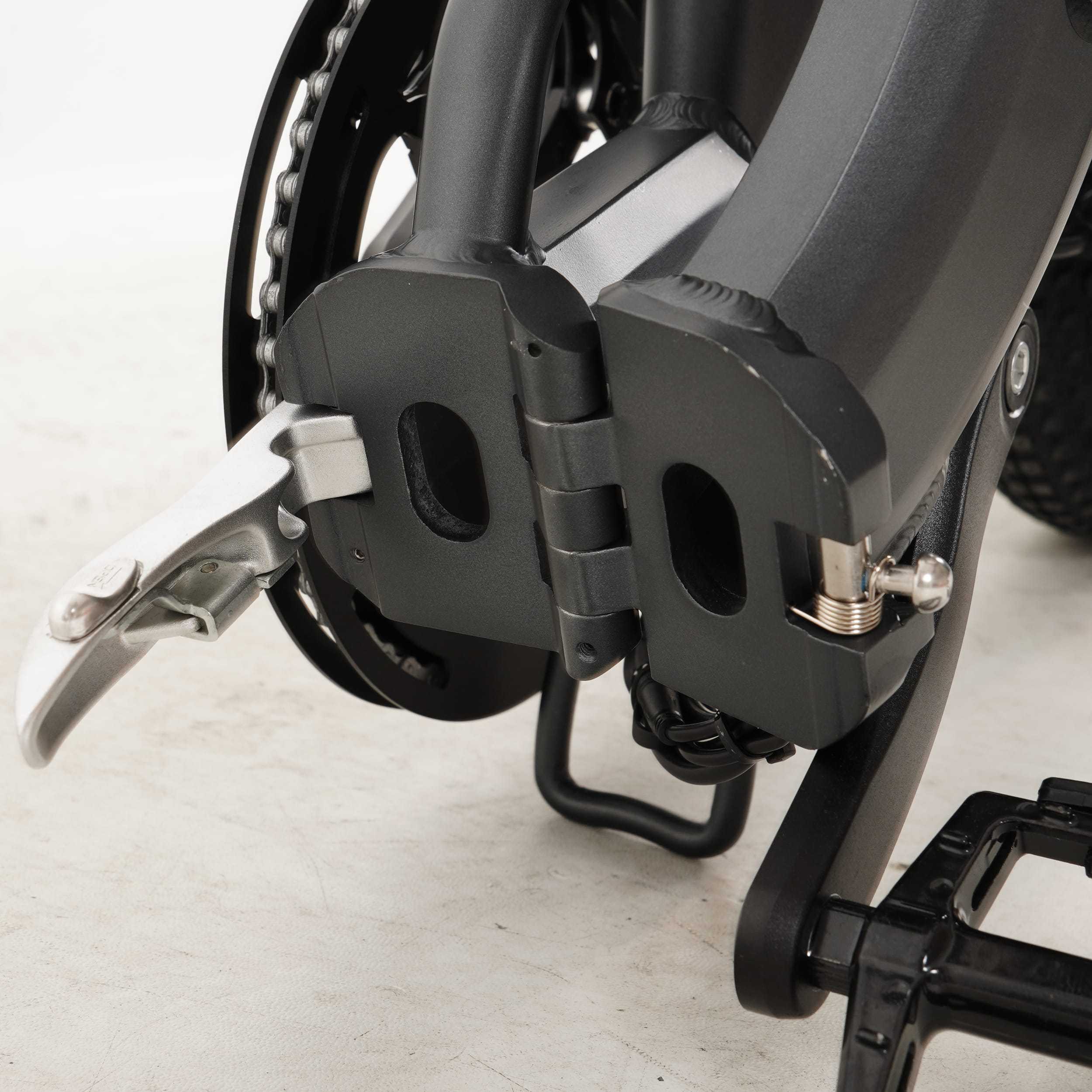

2. The frame and handlebars can be folded, which is convenient for putting in the trunk of the car, making it a travel tool.
3. The whole bicycle is only 28kg, light and compact.




Y20L Performance Characteristics

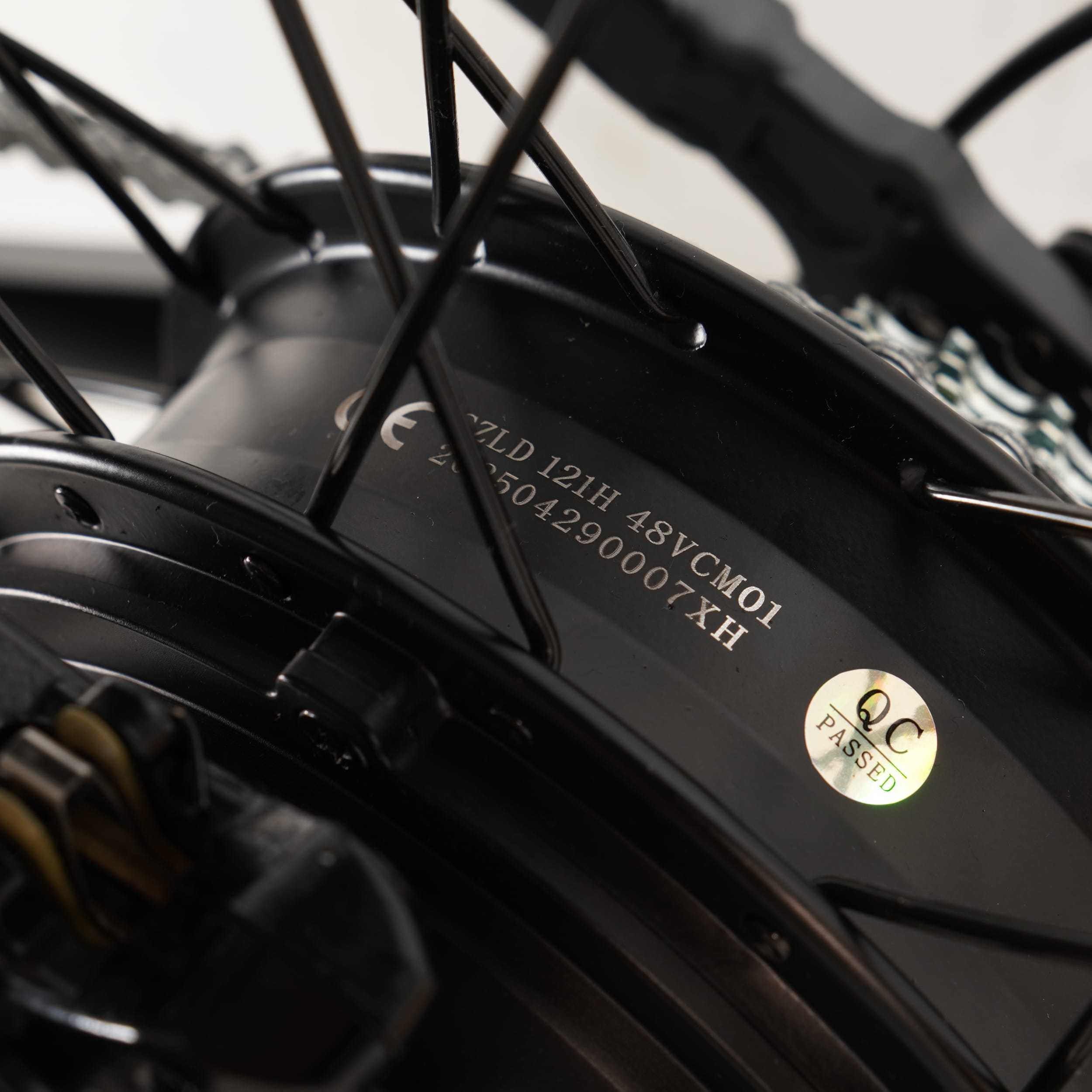

1. Peak 1200W (rated 750W) high-speed brushless motor helps you open up unlimited possibilities.

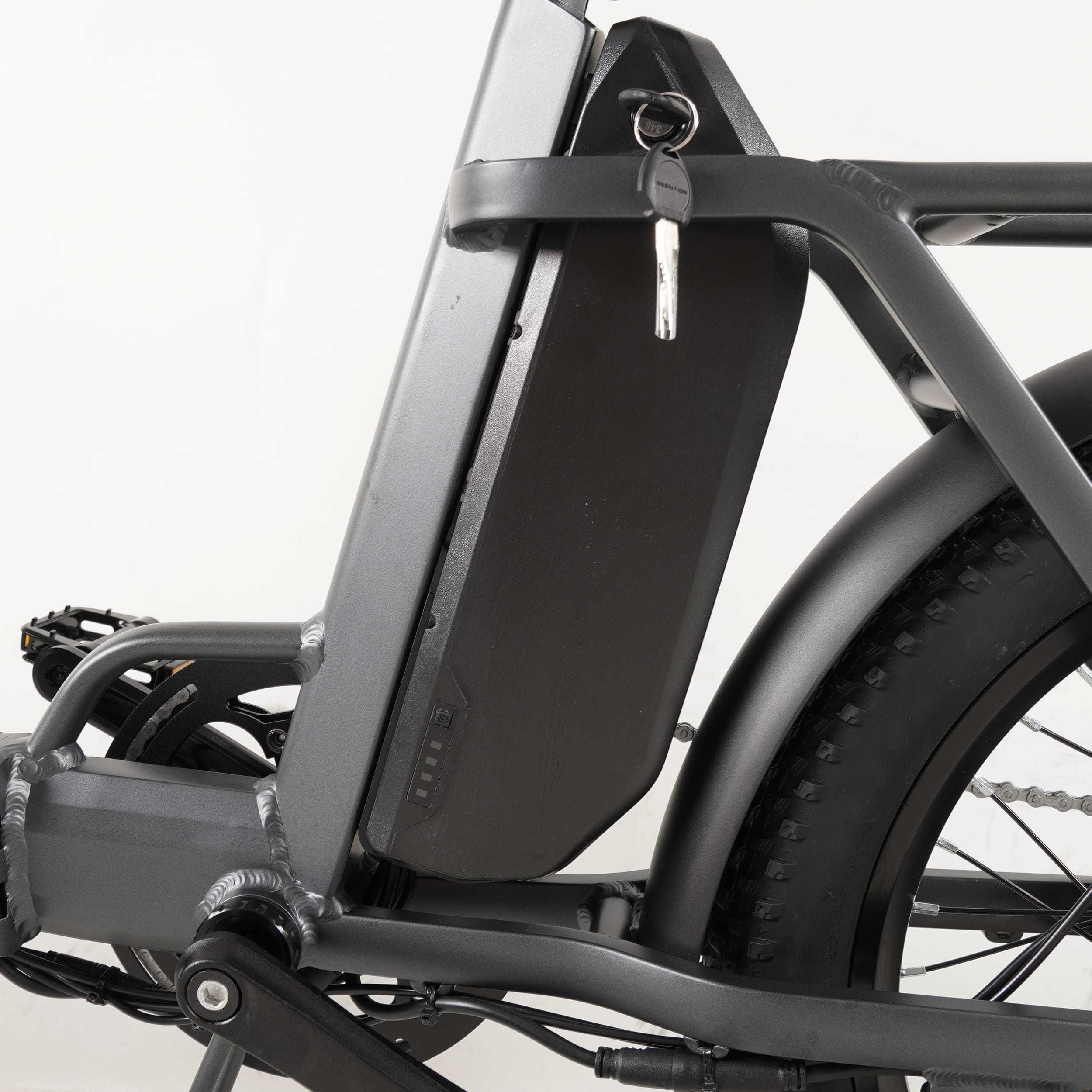

2. 15AH 18650 lithium-ion battery, maximum range of 52 miles (84km), so you don't have to worry about battery life.
3. The maximum speed can reach 28mph (45km/h), bringing a flying feeling!
MOTOR
peak 1200W
BATTERY
15AH
SPEED
45KM/H
















Y20L SPECIFICATI0N
Size
Overall size (MM)
1680*670*1060 mm
Packing size (MM)
1400*450*260 mm
Weight
Max. Loading (KG)
120kg
Net weight (KG)
28kg
Application
People Age
Adult、Teens
Speed
Top speed (KM/H)
28mph(45km/h)
Range (KM)
52miles(84km)
Climbing angle
30 degrees
Working temperature
-10℃~40℃
Storage temperature
-10℃~40℃
Battery
Battery type
18650 Lithium battery
Battery capacity (AH)
15Ah with removable battery
Moter
Motor type
DC brushless motor
Motor power
peak 1200w(rated 750w)
Rated voltage
48v
Sensor
Torque Sensor
Charger
Charging time
7.5 hours
Other Features
Wheel & Tire
20"*3"

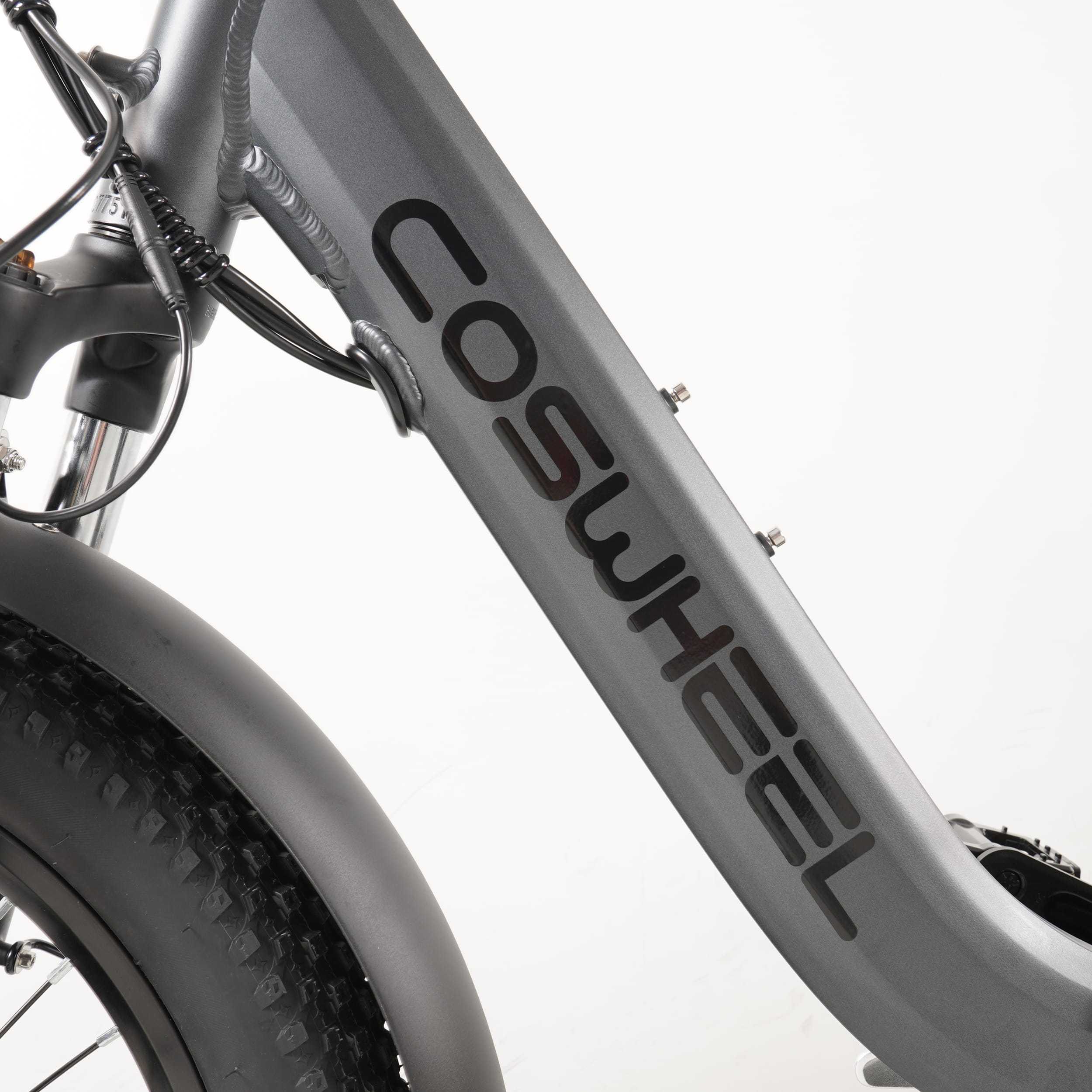

Frame material
Aluminium alloy
Speed up
Twist Throttle

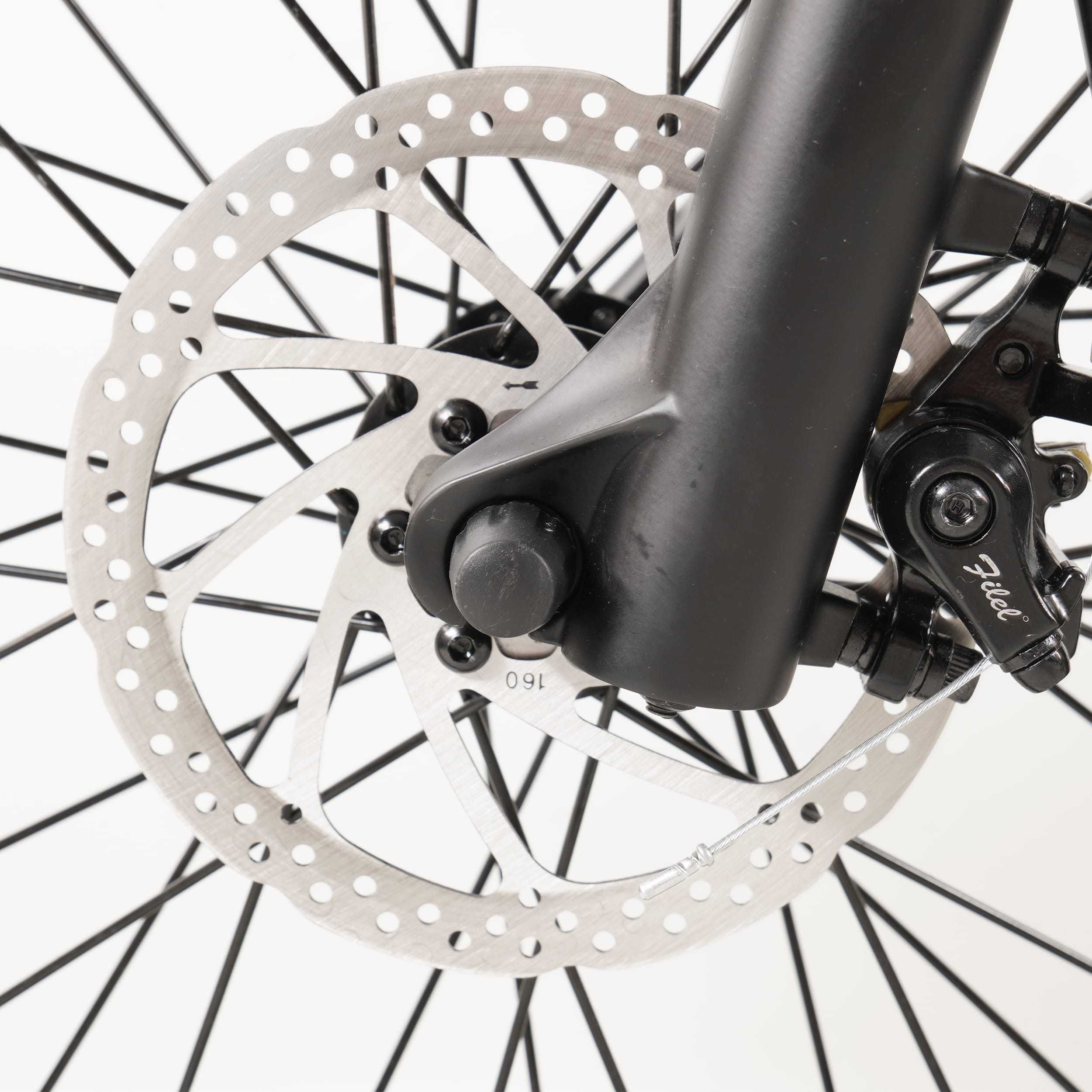

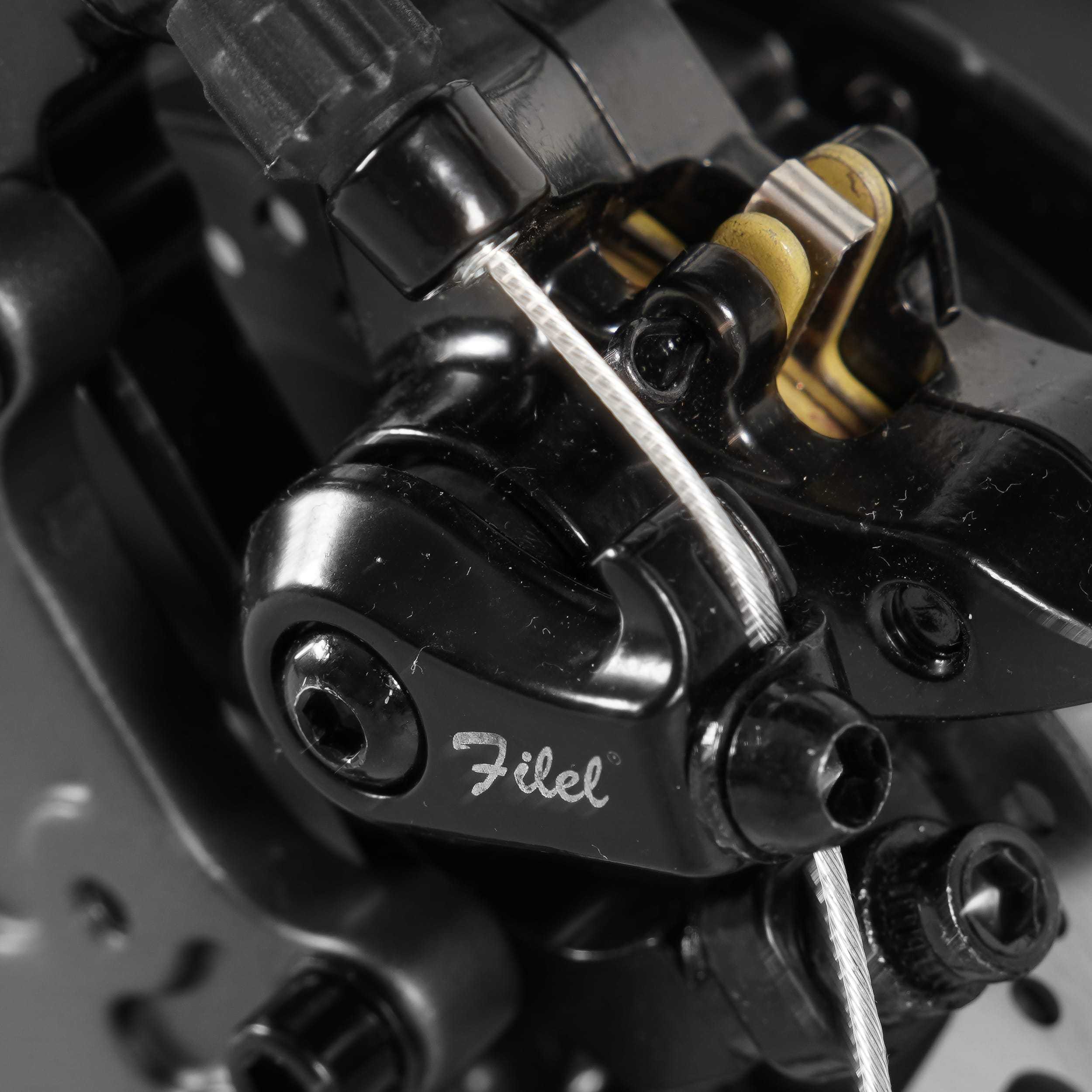

Brake
Double Disc Brake (front and back)

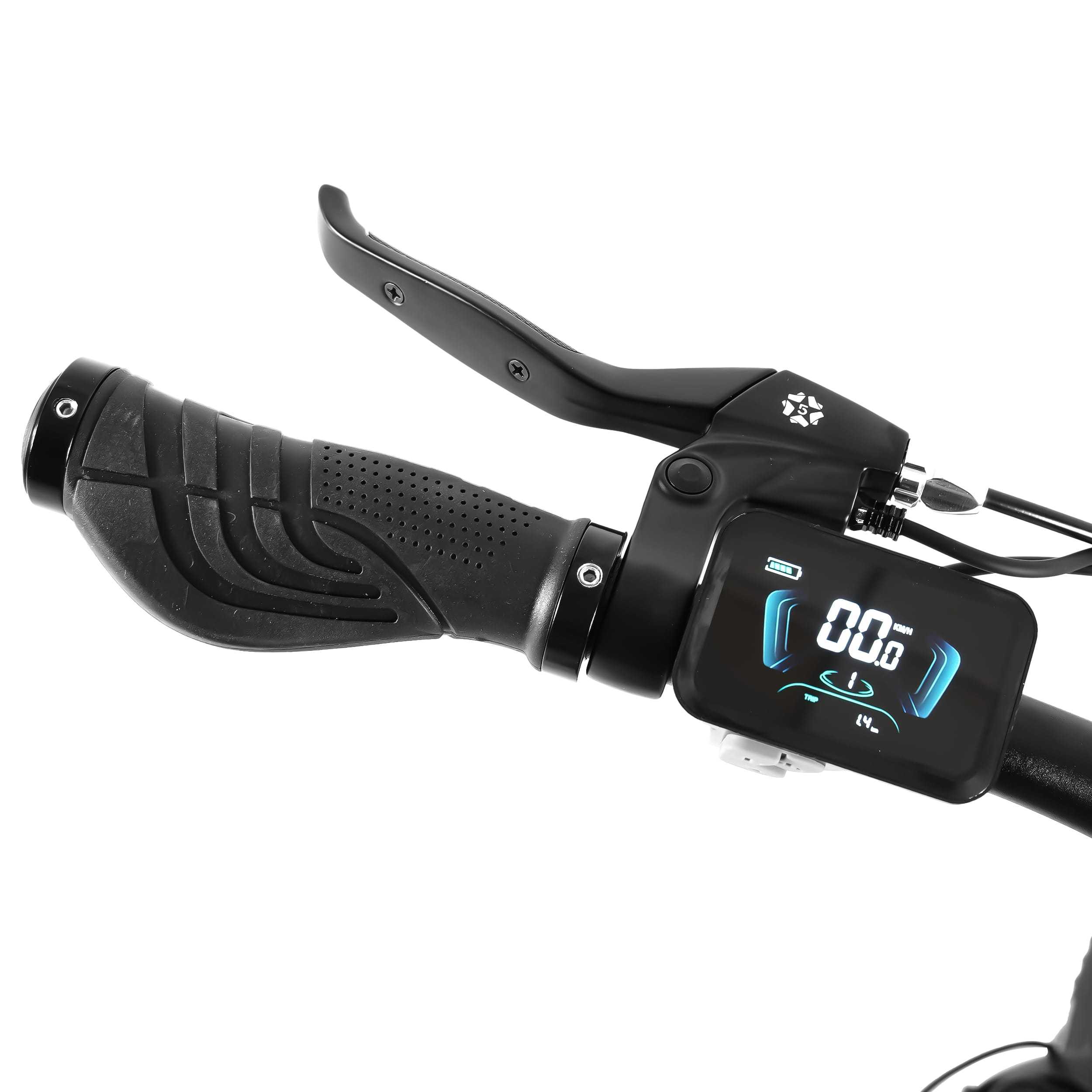

Display information
LCD display: speed, headlight, fault code...
