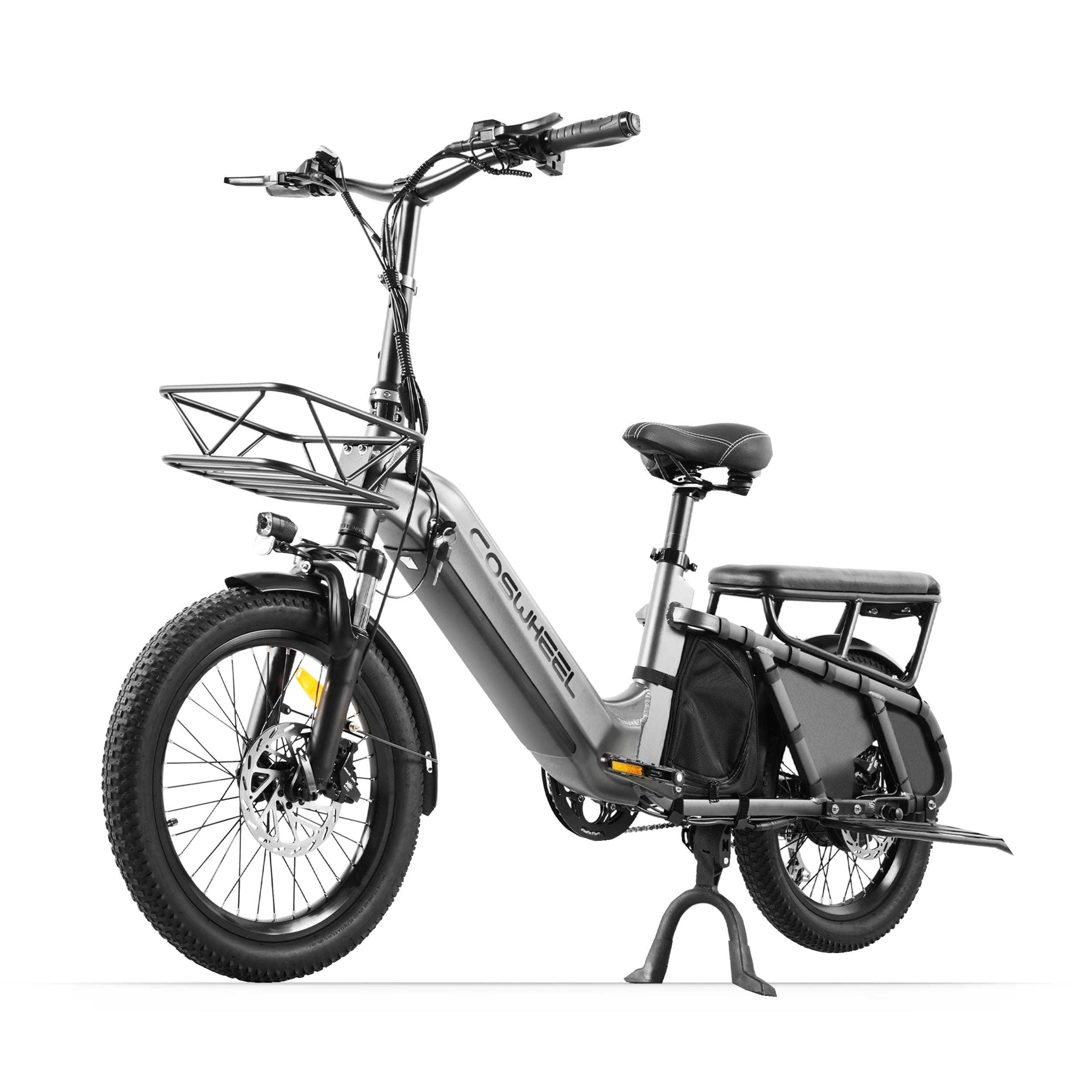

HQ20 Cargo E Bike
The HQ20 utilizes a new torque sensor for easier climbing, a 1300W peak power (rated 750W) motor, and a 19.2AH lithium battery for a maximum range of 67 miles (108km) and a maximum speed of 28mph (45km/h). With the purchase of the HQ20, we also provide a free front cargo basket, sling bag, cushion, and running boards, giving you even greater cargo capacity, making it one of your best travel tools.


A Good Helper For Family Travel
1. Utilizes a superior torque sensor with 60 Nm of torque, making it easier to climb hills.
2. Includes free cargo accessories, including a front cargo basket, bag, cushion, and running boards, giving you enhanced cargo capacity for your trips.
3. Adjustable seat and handlebars for a more enjoyable ride.
Reliable Safety Performance
1. Aluminum alloy frame for greater impact resistance
2. Heavy-duty hydraulic brakes with 180mm brake discs for excellent braking performance
3. Front fork with damping lock for a comfortable riding experience
4. A chain stay is included for the first time to prevent chain drops during long rides
5. A rear wheel blocker protects riders from rubbing their feet against the rear wheel and causing injury




HQ20 Performance Characteristics
1. Peak 1300W (rated 750W) high-speed brushless motor helps you open up unlimited possibilities.
2. 19.2AH 18650 lithium-ion battery, maximum range of 67 miles (108km), so you don't have to worry about battery life.
3. The maximum speed can reach 28mph (45km/h), bringing a flying feeling!
MOTOR
peak 1300W
BATTERY
19.2AH
SPEED
45KM/H












HQ20 SPECIFICATI0N
Size
Overall size (MM)
1780*700*1100 mm
Packing size (MM)
1520*280*740 mm
Weight
Max. Loading (KG)
200kg
Net weight (KG)
38kg
Application
People Age
Adult
Speed
Top speed (KM/H)
45km/h
Range (KM)
67miles(108km)
Climbing angle
35 degrees
Working temperature
-10℃~40℃
Storage temperature
-10℃~40℃
Battery
Battery type
18650 Lithium battery
Battery capacity (AH)
19.2Ah with removable battery
Moter
Motor type
DC brushless motor
Motor power
peak 1300w(rated 750w)
Rated voltage
48v
Charger
Charging time
7.5-10 hours
Other Features
Wheel & Tire
20"*2.4"
Frame material
Aluminium alloy
Speed up
Twist Throttle
Brake
Hydraulic Brake (front and back)
Display information
LCD display: speed, headlight, fault code...
