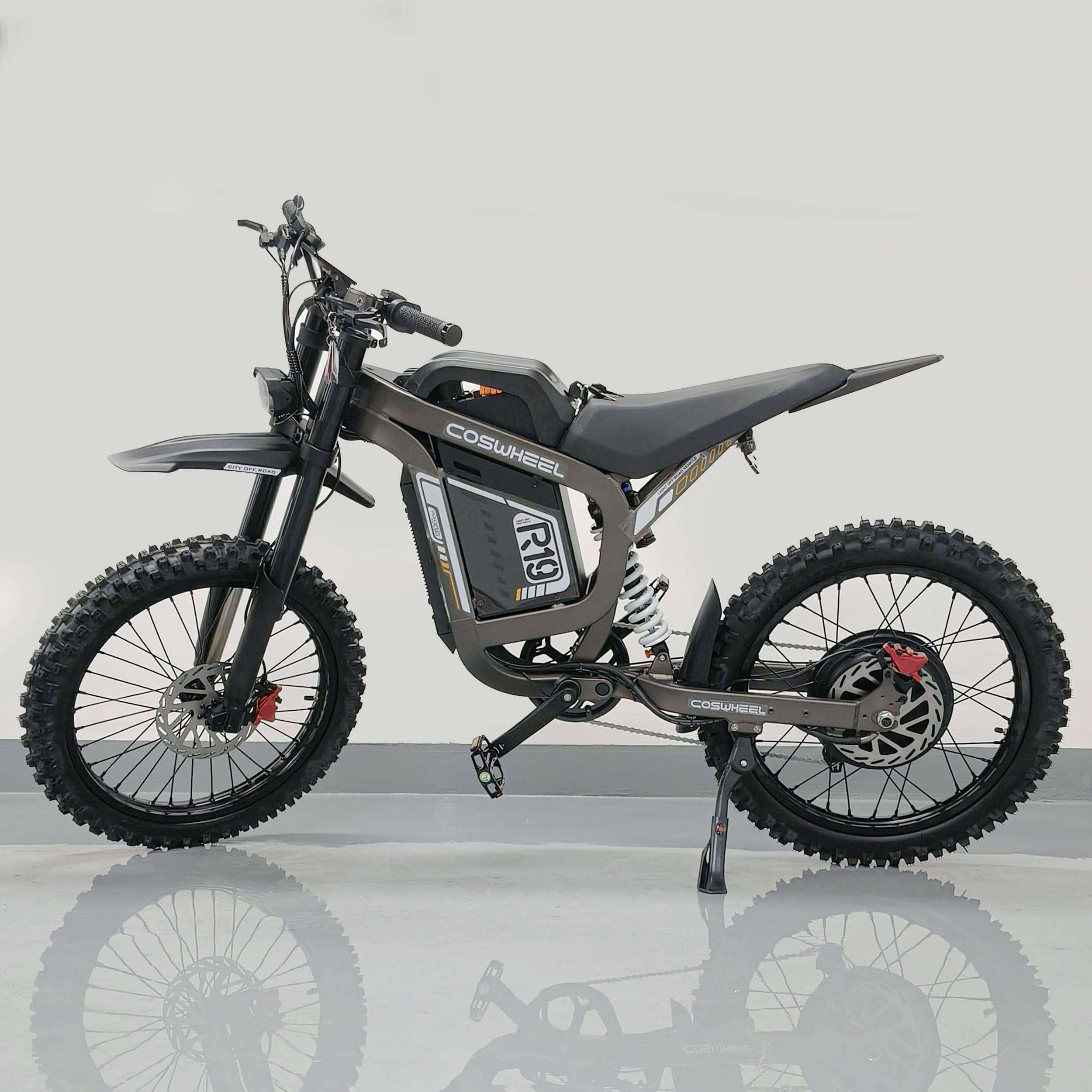

R19 Electric Dirt Bike
R19 is a lightweight off-road electric motorcycle designed by COSWHEEL Bike. Motor peak 6000W (rated 3000W), 72V 40AH, torque 120Nm, max speed 80km/h.
Motor Specifications

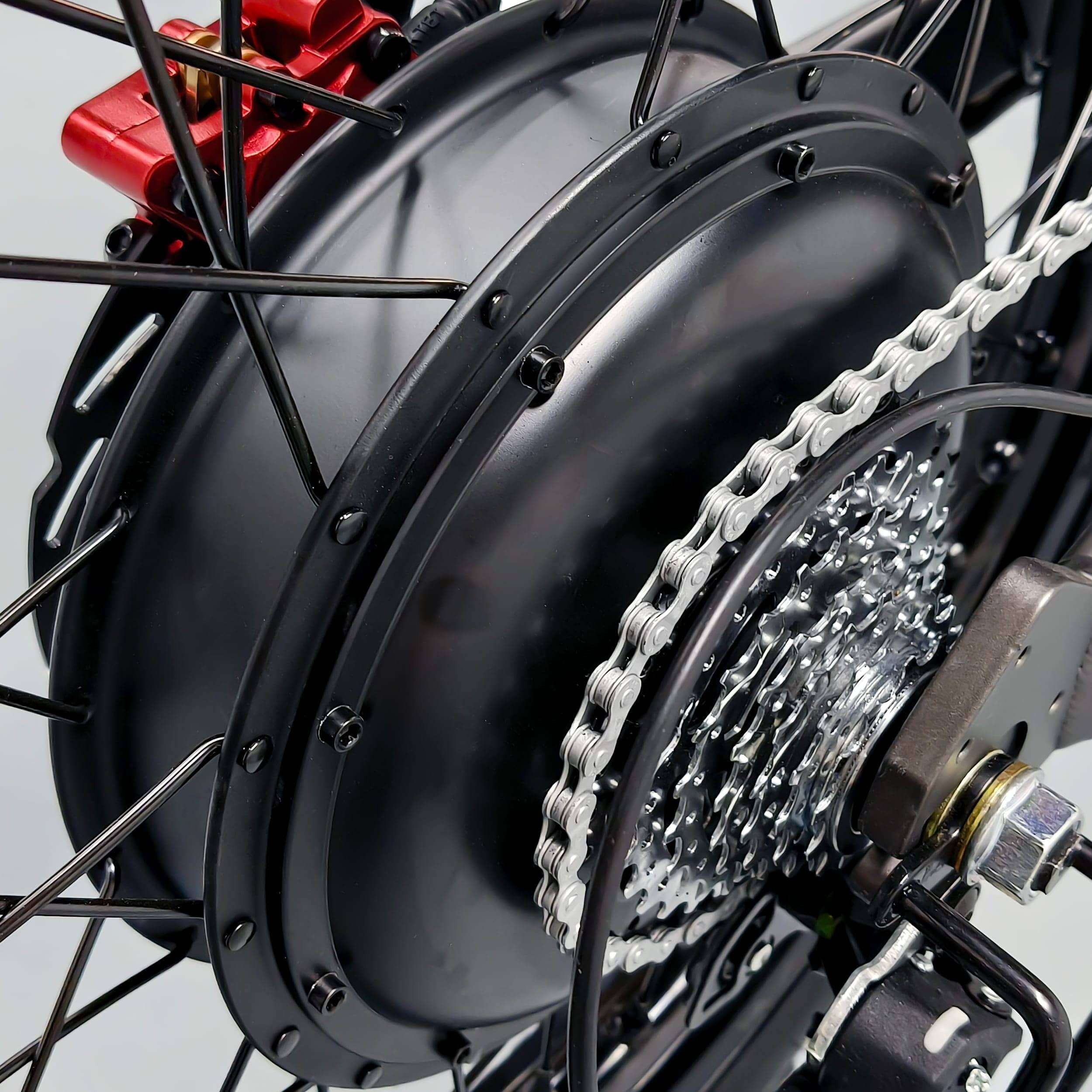

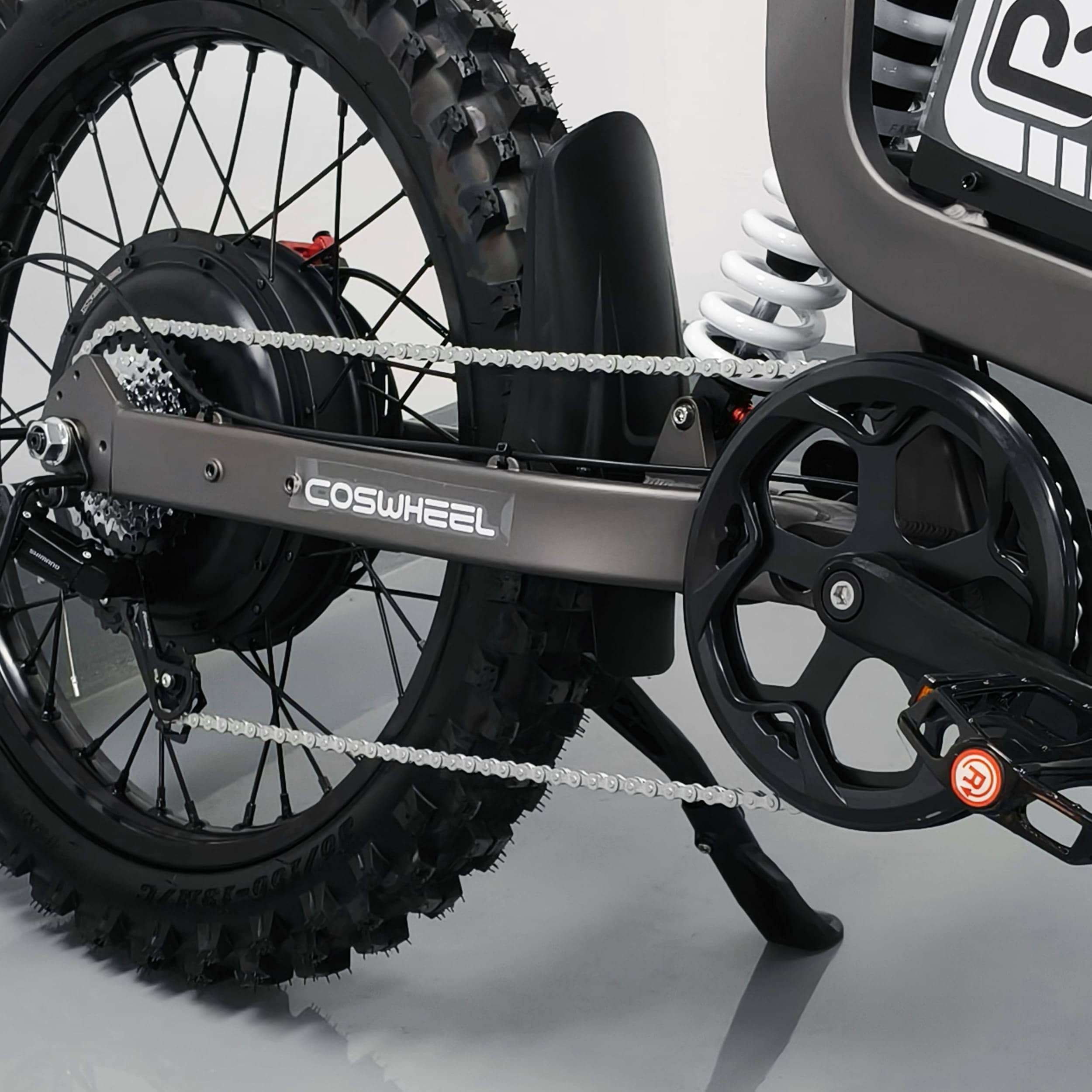

1. 3000w rear drive motor, peak power 6000W
2. Torque 120Nm
3. Maximum speed 80km/h
Battery Specifications

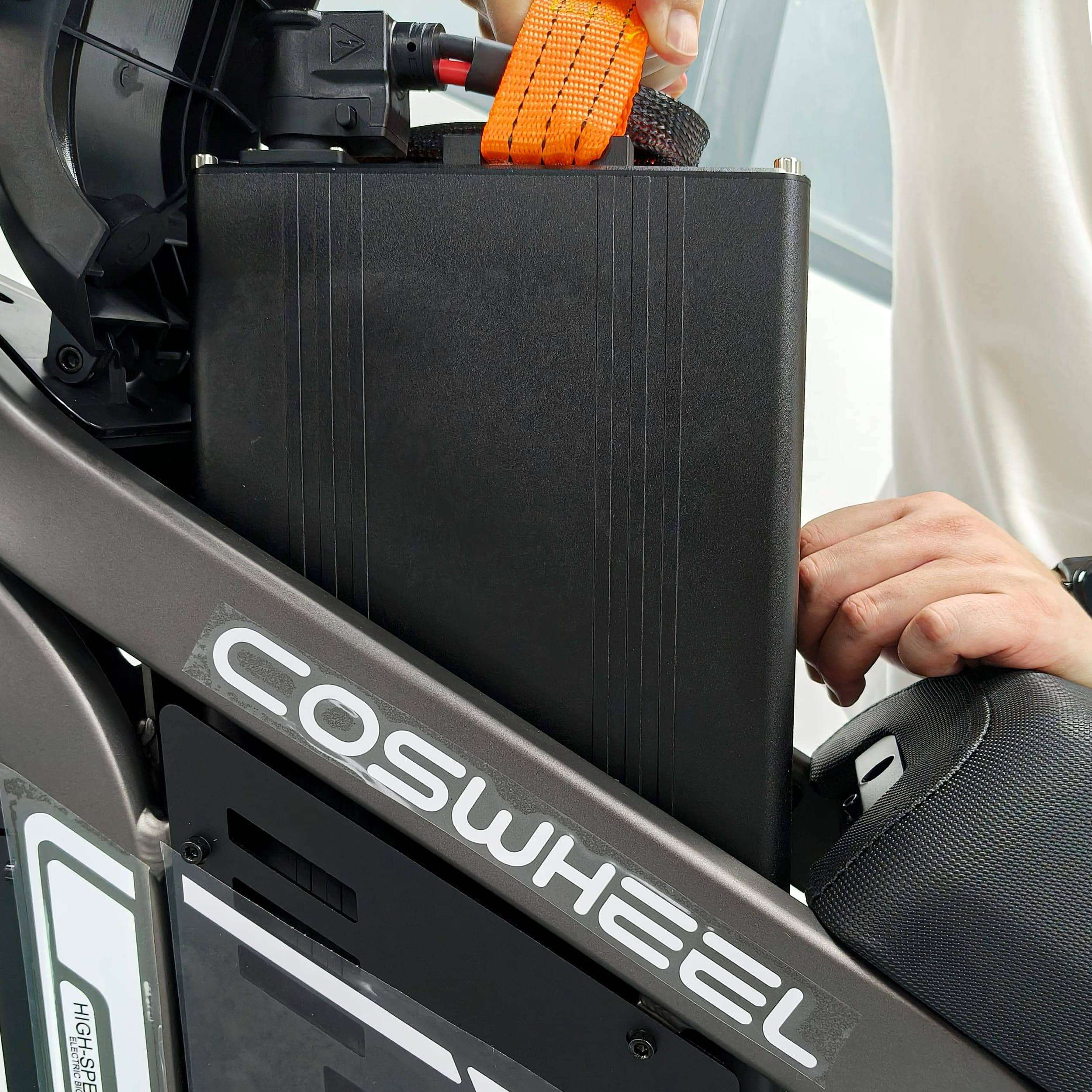

1. 72V40Ah lithium battery
2. Electric motorcycle controller 80A current
Other Specifications

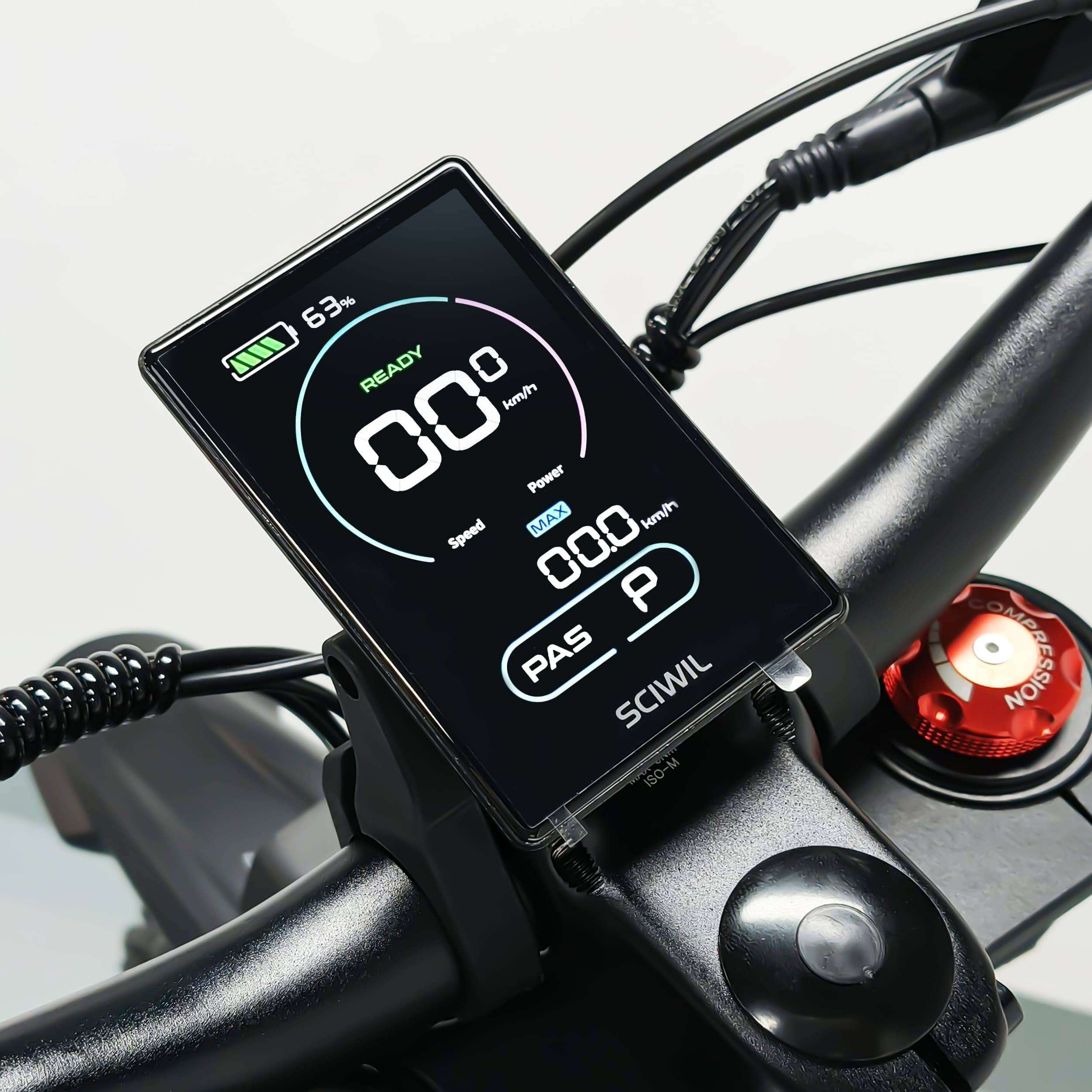

1. Instrument 3.5-inch LCD high-brightness color screen

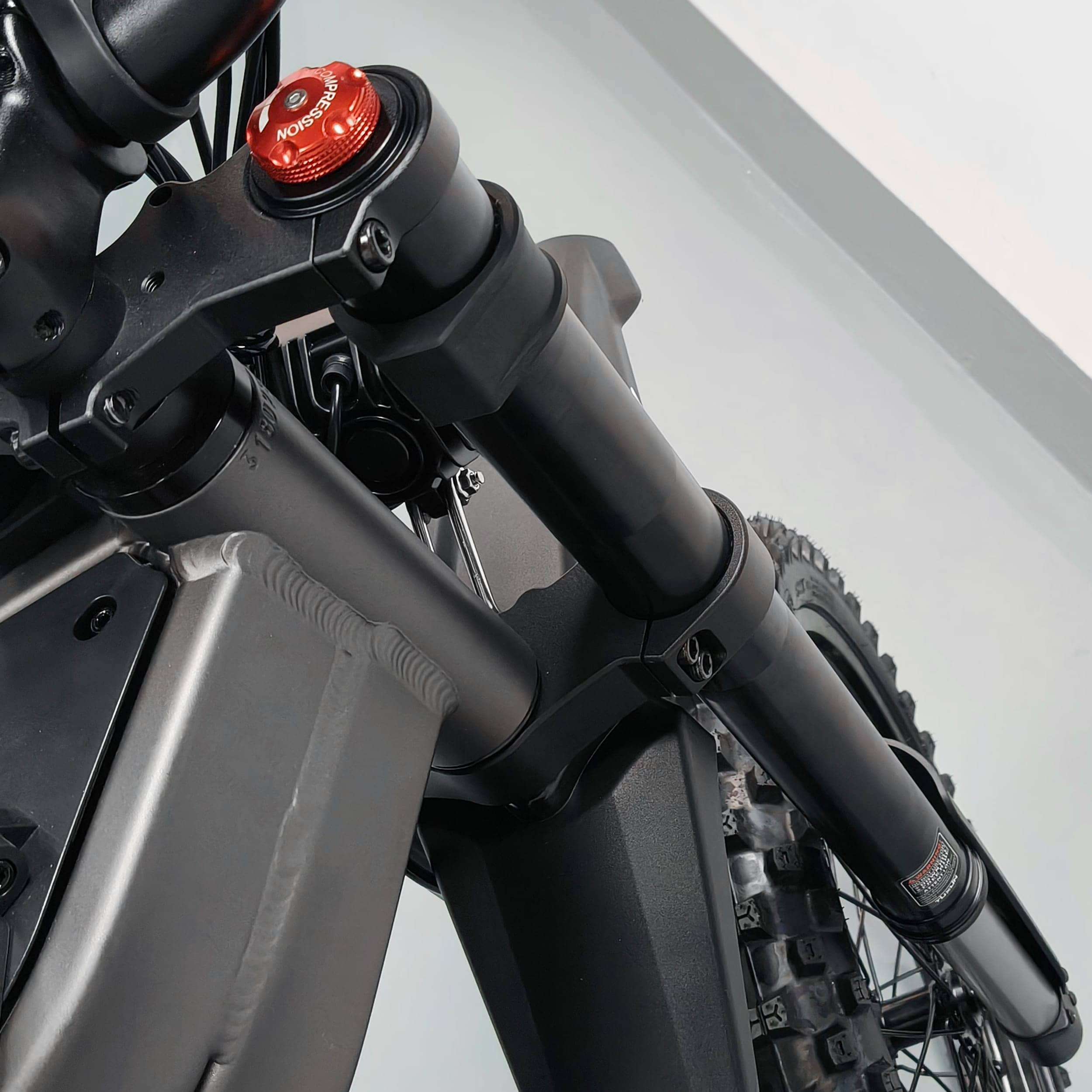

2. Front suspension inverted hydraulic shock absorber with adjustable damping, rebound stroke 200mm
3. Rear suspension 230mm/300mm damping adjustable shock absorber

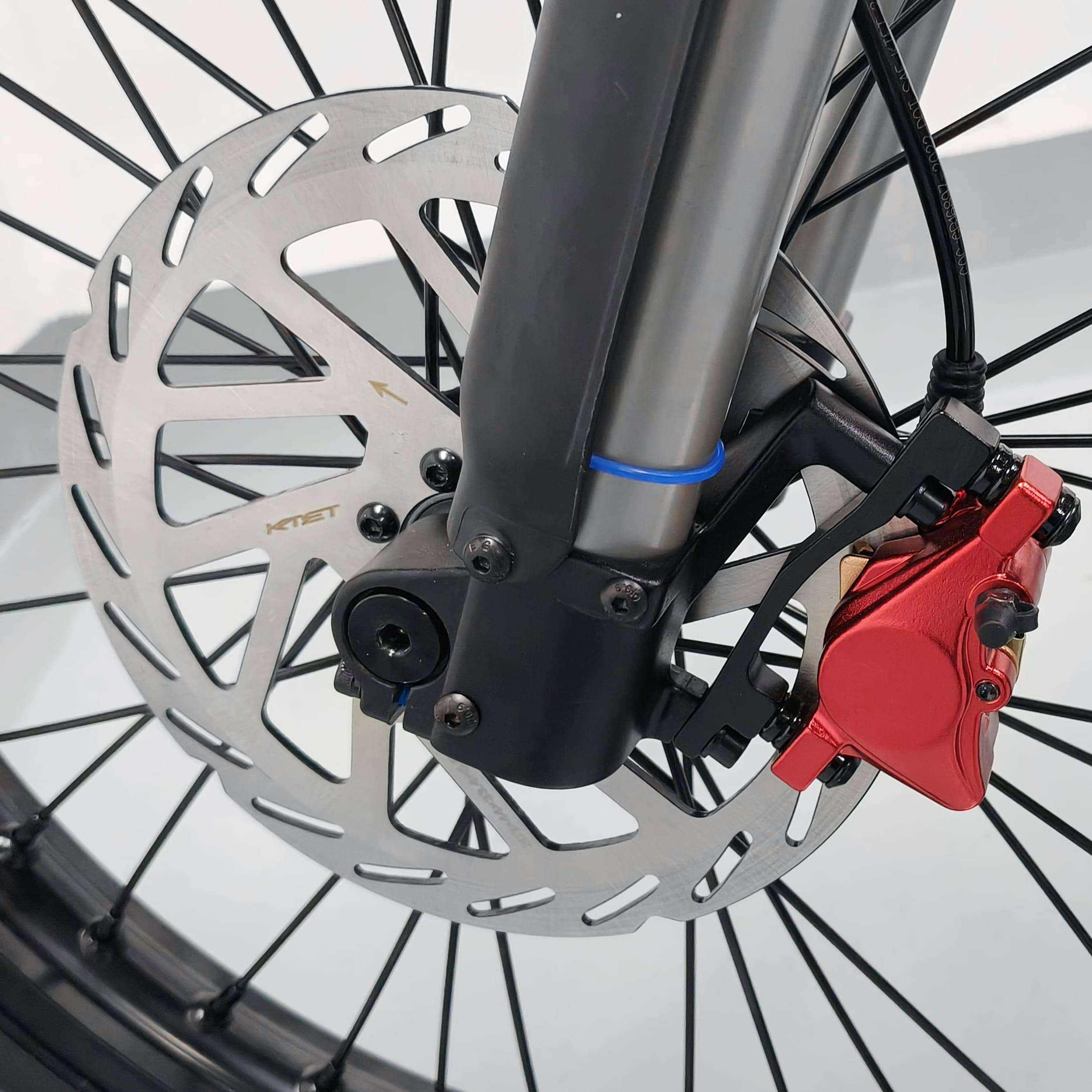

4. Front brake φ220X2.8 large diameter dual piston brake system

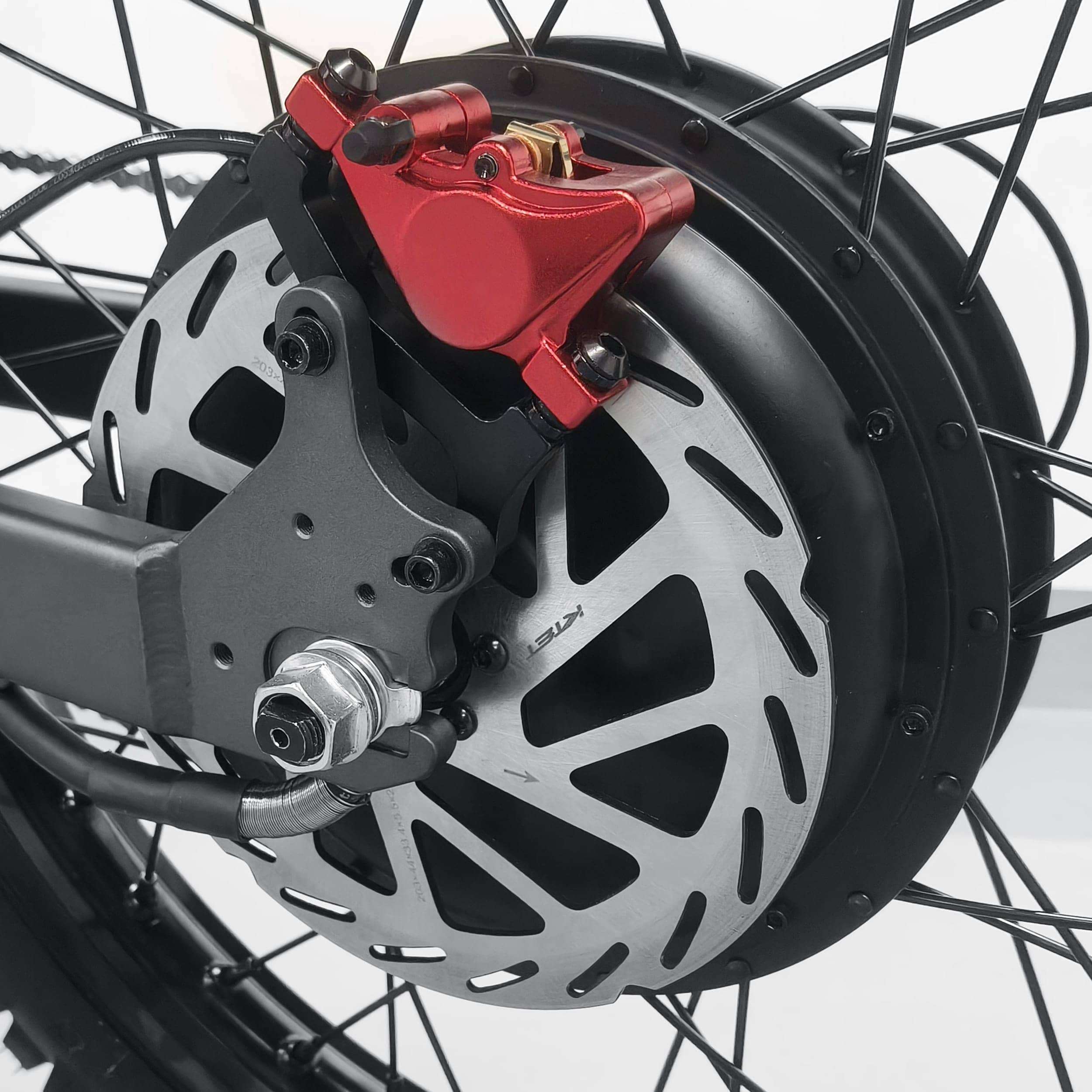

5. Rear brake φ180X2.8 large diameter dual piston brake system
MOTOR
peak 6000W
BATTERY
40AH
SPEED
80KM/H
R19 SPECIFICATI0N
Größe
Gesamtgröße (MM)
1900*700*1090cm
Packungsgröße (MM)
To be determined
Gewicht
Max. Belastung (KG)
200kg
Nettogewicht (KG)
40kg
Anmeldung
Menschen Alter
Erwachsene
Geschwindigkeit
Höchstgeschwindigkeit (KM/H)
80km/h
Reichweite (KM)
120km
Steigwinkel
35 degrees
Arbeitstemperatur
-10℃～40℃
Lagertemperatur
-10℃～40℃
Batterie
Akku-Typ
18650 Lithium-Akku
Batteriekapazität (AH)
40Ah with removable battery
Moter
Typ des Motors
Bürstenloser DC-Motor
Motorleistung
peak 6000w (rated 3000w)
Nennspannung
72v
Ladegerät
Aufladezeit
3,5-8 Stunden
Andere Merkmale
Rad & Reifen
Front Tires:70/100-19 professional off-road tire / Rear Tires:80/100-19 professional off-road tire
Material des Rahmens
Aluminiumlegierung
Beschleunigen
Drehgas
Bremse
Double Hydraulic Brake (front and back)
Informationen anzeigen
LCD-Anzeige: Geschwindigkeit, Scheinwerfer, Fehlercode...
